Kenton BS Shaking Incubator combine precise temperature control with oscillation for cultivating liquid/solid compounds in biological, medical, and environmental research. Essential for universities, petrochemical labs, and healthcare institutions, these versatile units support microbial, cellular, and biochemical studies with reliable performance. 2-year warranty and CE-certified.
Incorporates three or five shaft drive design technology with brushless DC motor for maintenance-free operation (30-300rpm stepless speed), delivering constant torque at 26mm/50mm amplitudes while reducing noise (≤45dB) and energy consumption by 30% versus conventional models.
PID touchscreen with ±0.1°C accuracy features RS485 connectivity, power-failure recovery, and soft-start acceleration. Includes motor overheat protection and auto-stop when opened.

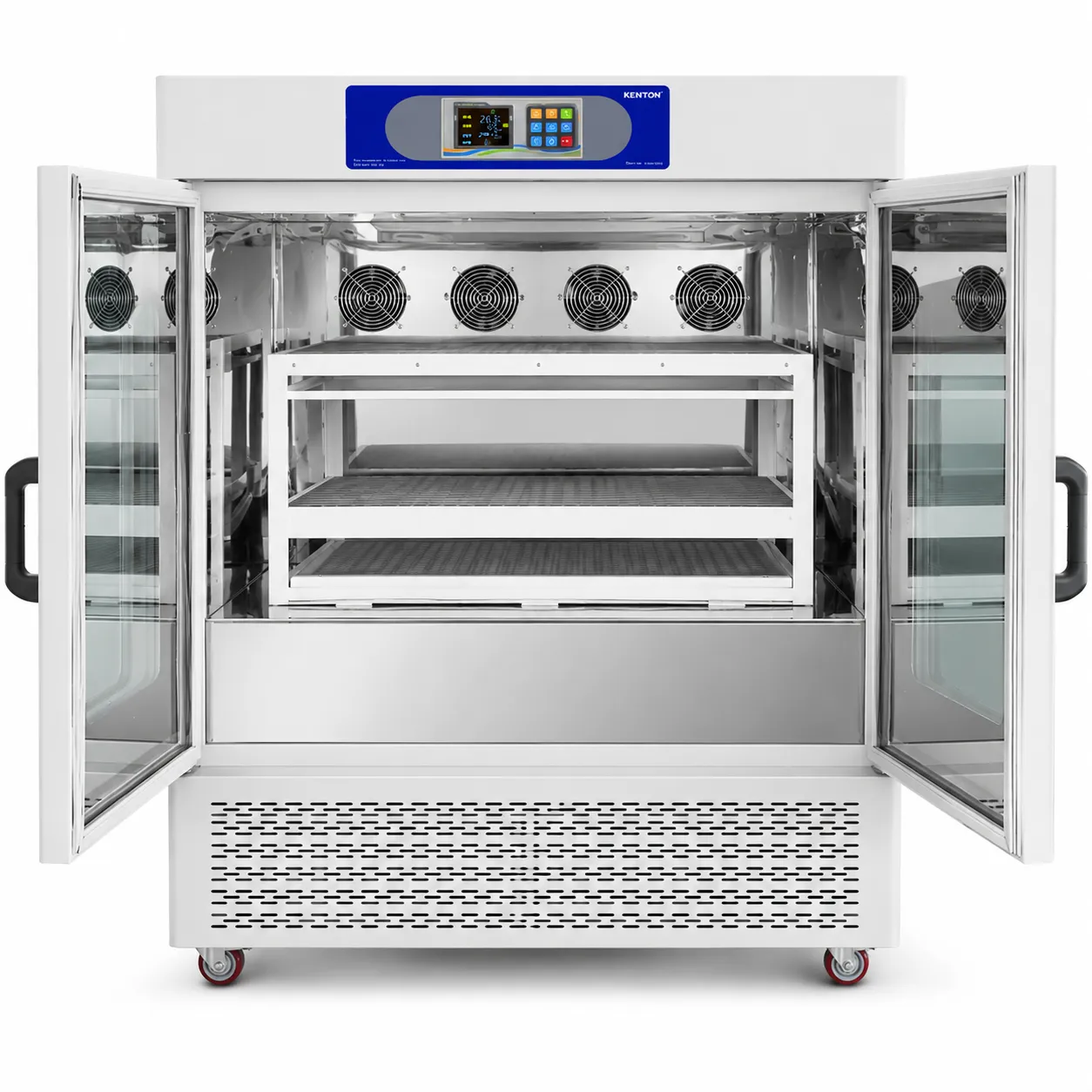

Stainless steel cavity with oxygenation hole, forced-air convection (±0.5°C uniformity), UV sterilization + interior lighting, universal spring test bottle rack (optional adhesive board), adjustable leveling feet/casters.
| Prodcut | Model | Worksapce dimension (mm) (H×W×D) | External Dimensions (mm) (H×W×D) | Voltage(V) | Power(KW) | Temperature(℃) | Accuracy | Fluctuation(%) | Number of layers or shelf dimensions | Shaking Method | Amplitude and vibration velocity |
| BS Shaking Incubator | BS-0 | 640×600×460 | 1390×730×640 | 220/110 | 0.8 | RT+5~65℃ | 0.1℃ | 0.5 | 2Floors/W540×D350 | Rotary (Cyclical) | 26mm 20~300r/min |
| BS-1 | 640×810×560 | 1390×950×735 | 0.9 | 2Floors/W710×D455 | |||||||
| BSF-0 | 640×600×460 | 1390×730×640 | 0.9 | 5~65℃ | 2Floors/W540×D350 | ||||||
| BSF-1 | 640×810×560 | 1390×950×735 | 1.2 | 2Floors/W710×D455 |
| Model | Standard bottle clamp configuration | Optional Bottle Clamp (Maximum units) |
| BS-0 | Standard Configuration: Upper Layer: 18 × 250ml bottle clamps Lower Layer: Universal tension springs | 50ML(56units), 100ML(56units), 250ML(36units), 500ML(24units) |
| BS-1 | Standard Configuration: Upper Layer: 32 × 250ml bottle clamps Lower Layer: Universal tension springs | 50ML(104units), 100ML(104units), 250ML(64units), 500ML(56units), 1000ML(30units) |
| BSF-0 | Standard Configuration: Upper Layer: 18 × 250ml bottle clamps Lower Layer: Universal tension springs | 50ML(56units), 100ML(56units), 250ML(36units), 500ML(24units) |
| BSF-1 | Standard Configuration: Upper Layer: 32 × 250ml bottle clamps Lower Layer: Universal tension springs | 50ML(104units), 100ML(104units), 250ML(64units), 500ML(56units), 1000ML(30units) |
