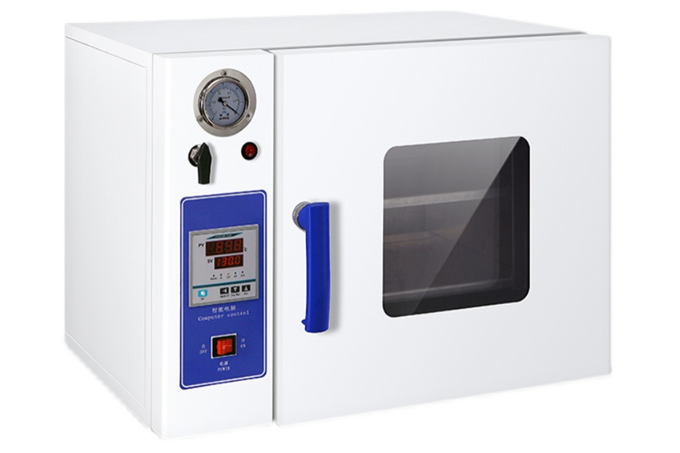

DZF Vacuum Drying Oven

Kenton DZF Vacuum Drying Oven is ideal for biochemical, pharmaceutical, and agricultural research, these ovens efficiently dry heat-sensitive, oxidizable materials and sterilize glassware. Vacuum technology lowers boiling points, enabling gentle yet rapid drying of powders and granular samples. Perfect for delicate compounds requiring decomposition-free dehydration in medical, environmental, and industrial labs. 2-year warranty and CE-certified.

DZF Vacuum Drying Oven
DZF Vacuum Drying Oven
DZF Vacuum Drying Oven
Get A Quote
Get A Quote

Features of DZF Vacuum Drying Oven

01.
Durable Chamber Construction

The industrial drying oven features a stainless steel or cold-rolled steel chamber with rounded corners for easy cleaning, reinforced by 2.5mm thick walls and five-sided structural support for enhanced pressure resistance and durability.

02.

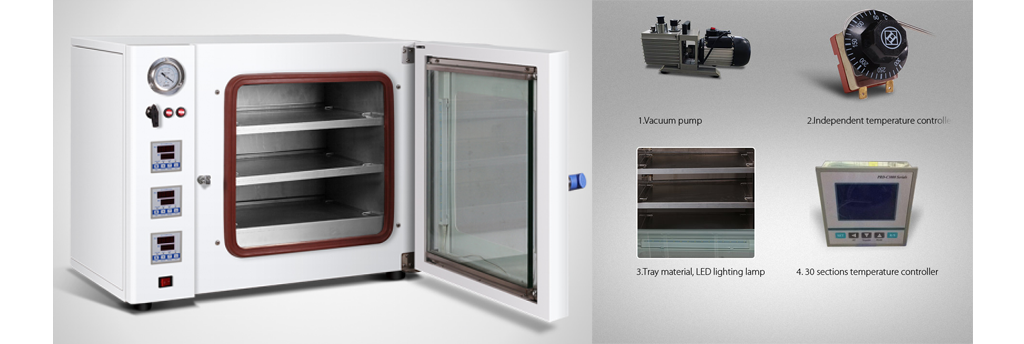

Precision Sealing System

Adjustable spring screws and molded silicone door seals maintain optimal vacuum levels, while tempered dual-layer glass doors provide safety.

03.

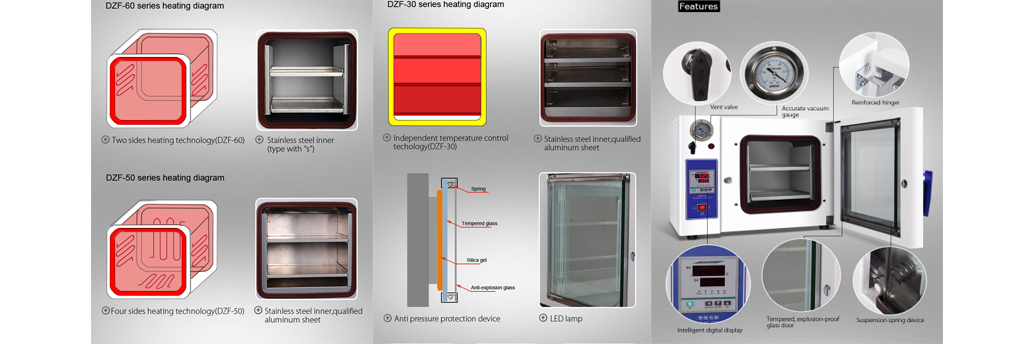

Advanced Heating Options

DZF-60XX: Dual-side heating

DZF-50XX: Four-side heating

DZF-30XX: Zoned heating with independent controls

04.
Smart Temperature Management

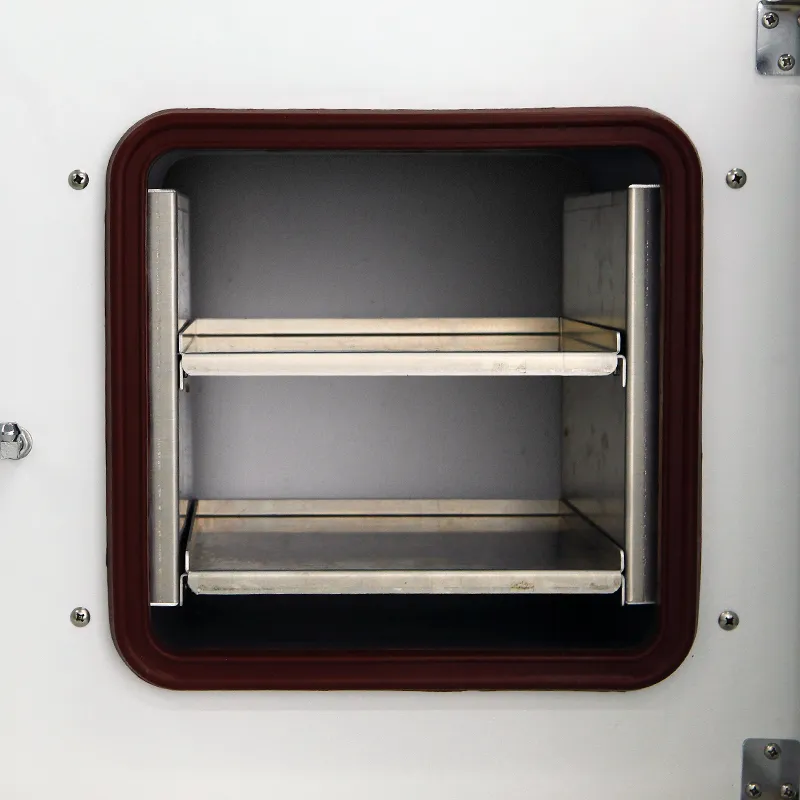

PID digital control with timer and over-temperature alarm ensures precise thermal regulation. Aluminum shelves optimize heat transfer efficiency.

/uploads/image/20250527/kenton-apparatus.webp

Specifications of DZF Vacuum Drying Oven

ModelVoltage (V)Temperature Range (°C)Timer RangeTemperature Accuracy (°C)Vacuum RangePower (kW)Cavity Dimensions (H × W × D, mm)Overall Dimensions (H × W × D, mm)Package Dimensions (H × W × D, mm)Net Weight (kg)
DZF-6020(S)110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa0.8280 × 300 × 300450 × 635 × 465570 × 720 × 54542.5
DZF-6050(S)110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa1.2400 × 415 × 350570 × 750 × 515690 × 830 × 60065
DZF-6090(S)110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa2.4485 × 440 × 425620 × 780 × 600740 × 900 × 71080
DZF-6130(S)110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa3495 × 495 × 5201580 × 700 × 6701700 × 830 × 800120
DZF-3020S110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa0.8315 × 265 × 280450 × 635 × 465570 × 720 × 54545
DZF-3050S110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa1.2400 × 370 × 350570 × 750 × 515690 × 830 × 60068
DZF-3090S110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa2.4485 × 400 × 425620 × 780 × 600740 × 900 × 71085
DZF-3130S110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa—————
DZF-5020S110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa1280 × 265 × 245450 × 635 × 465570 × 720 × 54543
DZF-5050S110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa1.4370 × 370 × 315570 × 750 × 515690 × 830 × 60066
DZF-5090S110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa2.4455 × 440 × 390620 × 780 × 600740 × 900 × 71081
DZF-5130S110/22050–2000–999 min/h±0.5Absolute pressure: 0–999.9 mbar or 0–99.99 kPa; standard atmospheric pressure: <133 Pa or −0.1 MPa—————
