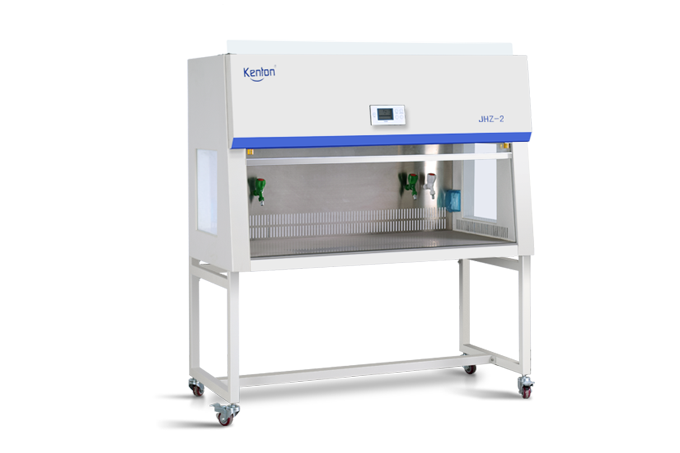

Kenton JH Laminar Air Flow Cabinet provide sterile workspaces for biotechnology, pharmaceuticals, and electronics manufacturing. Engineered with optimized airflow dynamics, compatible with ISO
14644.1 Class 5 cleanroom requirements, ensuring contamination-free conditions for sensitive procedures in life sciences and precision industries. 3-year warranty and CE-certified.

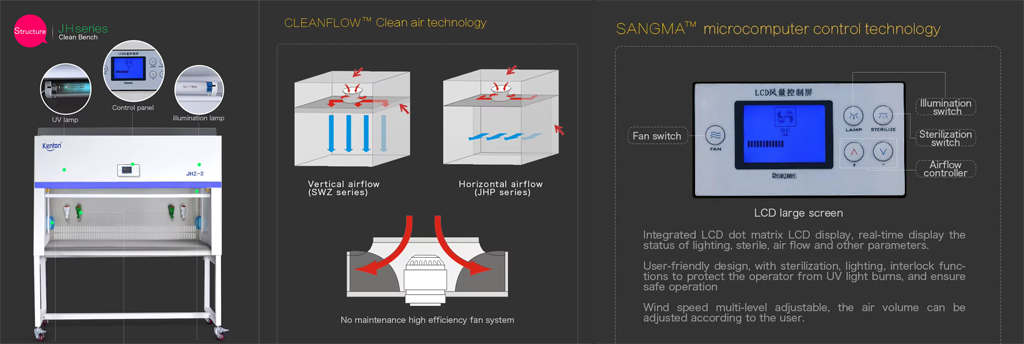

Achieving ISO 14644.1 Class 5 (U.S. Fed 209E Level 100) cleanliness. Features dual HEPA filtration (99.99% efficiency) with vertical/horizontal airflow options and filter life monitoring. Compliant with AS1386.5/EN12469 standards.

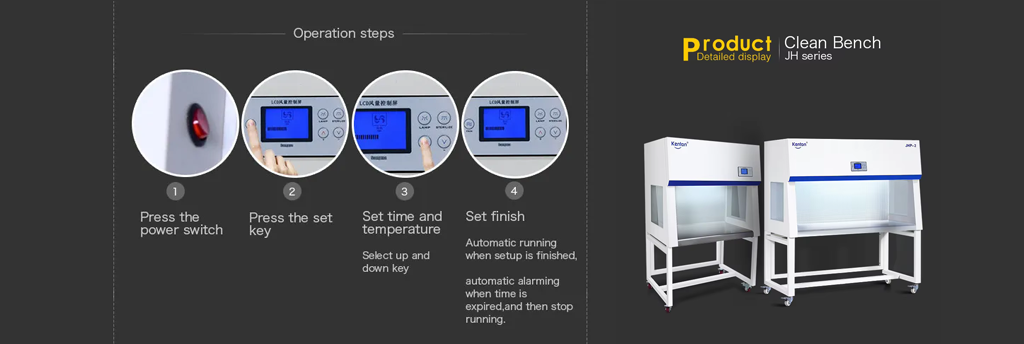

Integrated LCD displays real-time parameters with UV/safety interlocks, prevent operators from being burned by ultraviolet light. Adjustable wind speed, centrifugal fan design ensures ≤55dB operation through optimized aerodynamics and micro-mesh diffusers.

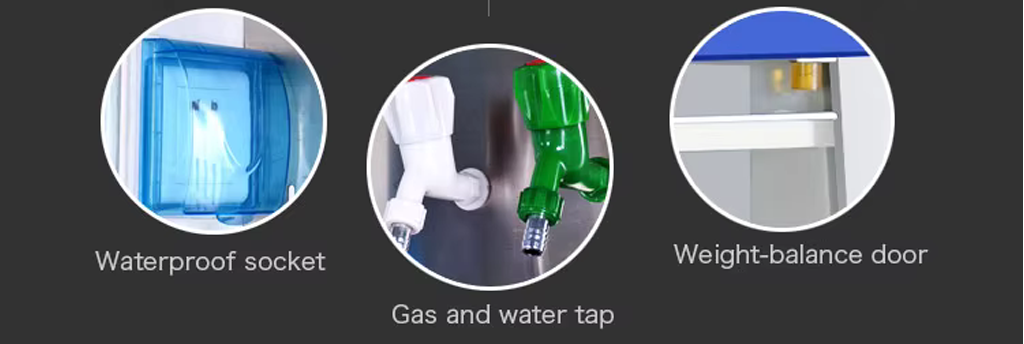

The front is tilted as a whole, and the operating area is equipped with gas and water source interfaces and splash-proof power sockets. Angled SUS304 stainless work surface with radius edges. Counterweight front door that can be positioned arbitrarily. The control panel is designed to be flipped outwards for easy maintenance, assembled tripod design for easy transportation.
| JHP horizontal airflow | JHZ vertical airflow | |||
| Product type | one person JHP-1 | two person JHP-2 | one person JHZ-1 | two people JHZ-2 |
| Cleanliness rating | ISO 14644.1 standard, CLASS 5 (U.S. Federal 209E, 100 level) | |||
| Control system | LCD Intelligent control system(With filter failure reminder) | |||
| Wind speed | 0.3~0.6m/s(Adjustable) | |||
| Noise (dB) | ≤62 | |||
| Vibration half peak | ≤3μm（X、Y、Z direction） | |||
| High efficiency filter | Efficiency 99.99% | |||
| Illumination（LX） | ≥300 | |||
| Work environment | Ambient temperature 10~30℃, Relative humidity | |||
| below 70%, No obvious vibration and dust around | ||||
| Mesa material | SUS304 stainless steel | |||
| Overall size(mm） | 1585×990×735 | 1585×990×735 | 1585×1460×735 | |
| （H×W×D） | 1585×1460×735 | |||
| Internal size（mm） | 500×830×550 | 500×1300×550 | 500×830×680 | 500×1300×680 |
| （H×W×D） | ||||
| Voltage(V) | AC110V/220/50Hz | |||
| Power（W） | 200 | 400 | 200 | 400 |
| Net weight (KG) | 120 | 210 | 110 | 210 |
| Shipping weight(KG) | 130 | 235 | 130 | 235 |
| Packing size（mm） | 1030×1180× | 1030×1650× | 1030×1180× | 1030×1650× |
| （H×W×D） | 855 | 855 | 855 | 855 |
