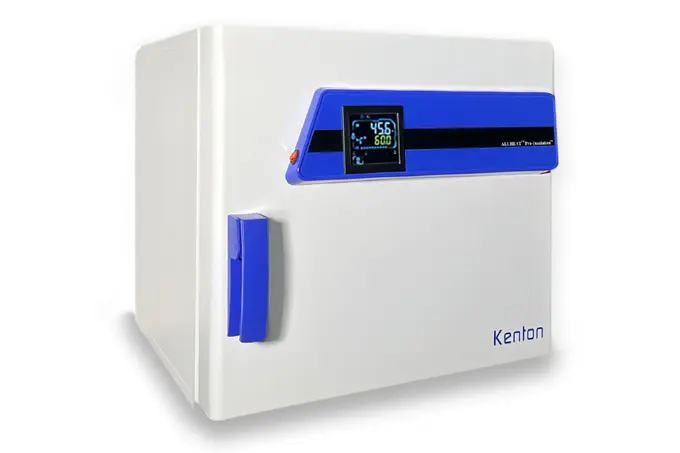

GX Programmable Thermostatic Drying Oven

Ideal for drying, sterilization, heat treatment, and storage. SUS304 stainless steel cavity and multi-sided preheating enhance temperature uniformity, reduce energy consumption, making it reliable for labs and research purposes. 3-year warranty and CE-certified.


GX Programmable Thermostatic Drying Oven
GX Programmable Thermostatic Drying Oven
Image_1725
GXPX仪表(英文)
Cache_26ab8dddb52c4566

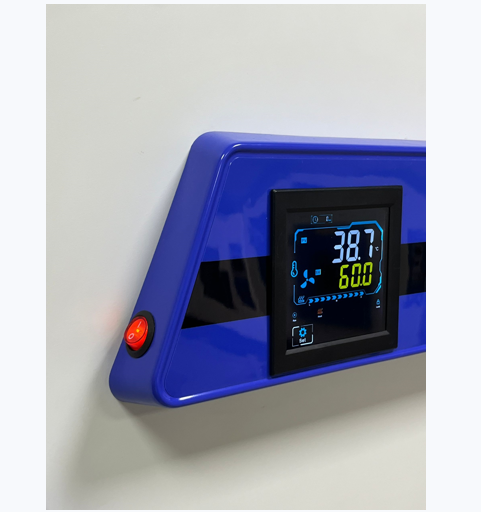

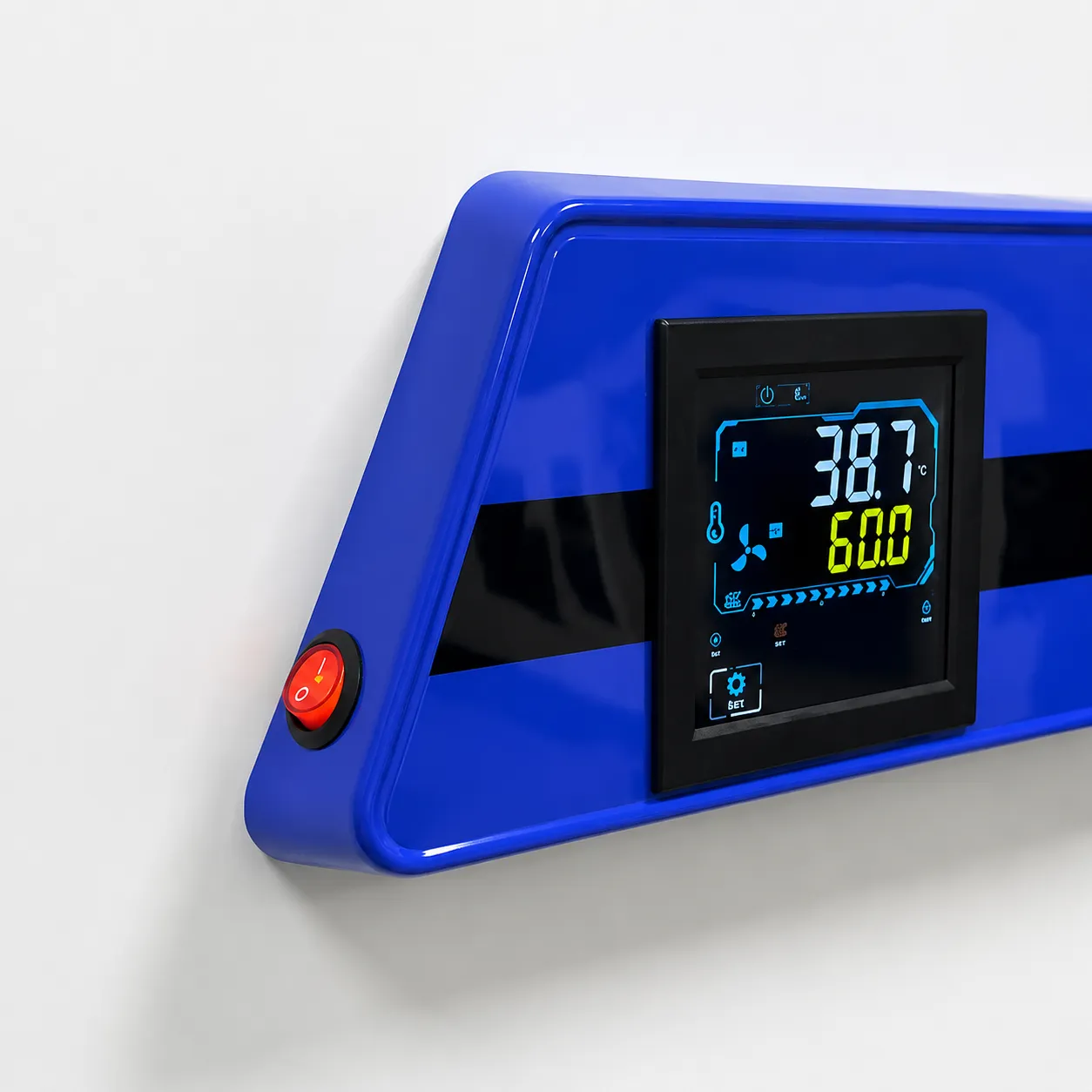

GX programmable drying oven digital temperature control panel
GX Programmable Thermostatic Drying Oven
GX Programmable Thermostatic Drying Oven
Get A Quote
Get A Quote

Features of GX Programmable Thermostatic Drying Oven

01.
ALLHEAT™ Preheating and Pro-Insulation™ Technology

The laboratory drying oven features ALLHEAT™ preheating technology and Pro-Insulation™ for consistent temperature control, ensuring reliable experiment conditions.

02.

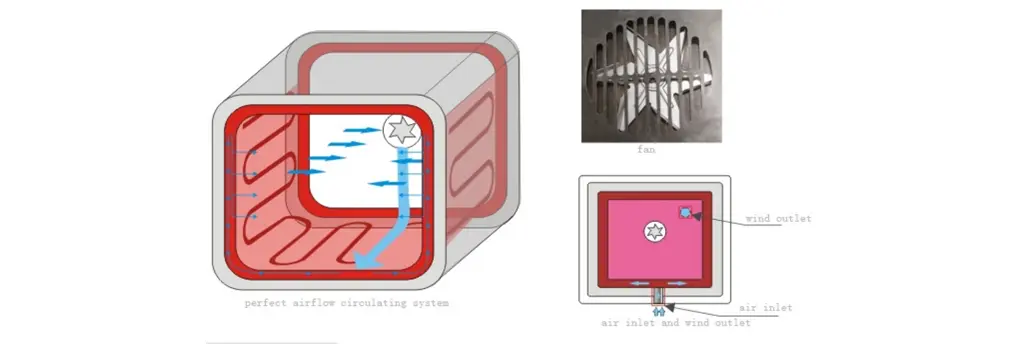

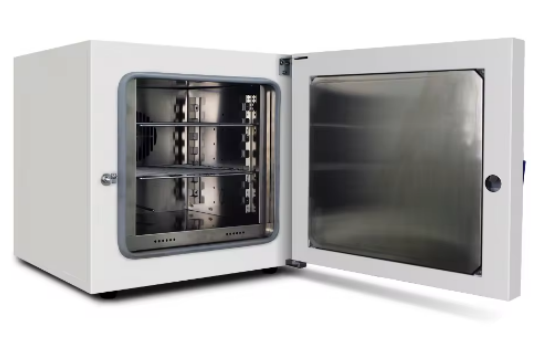

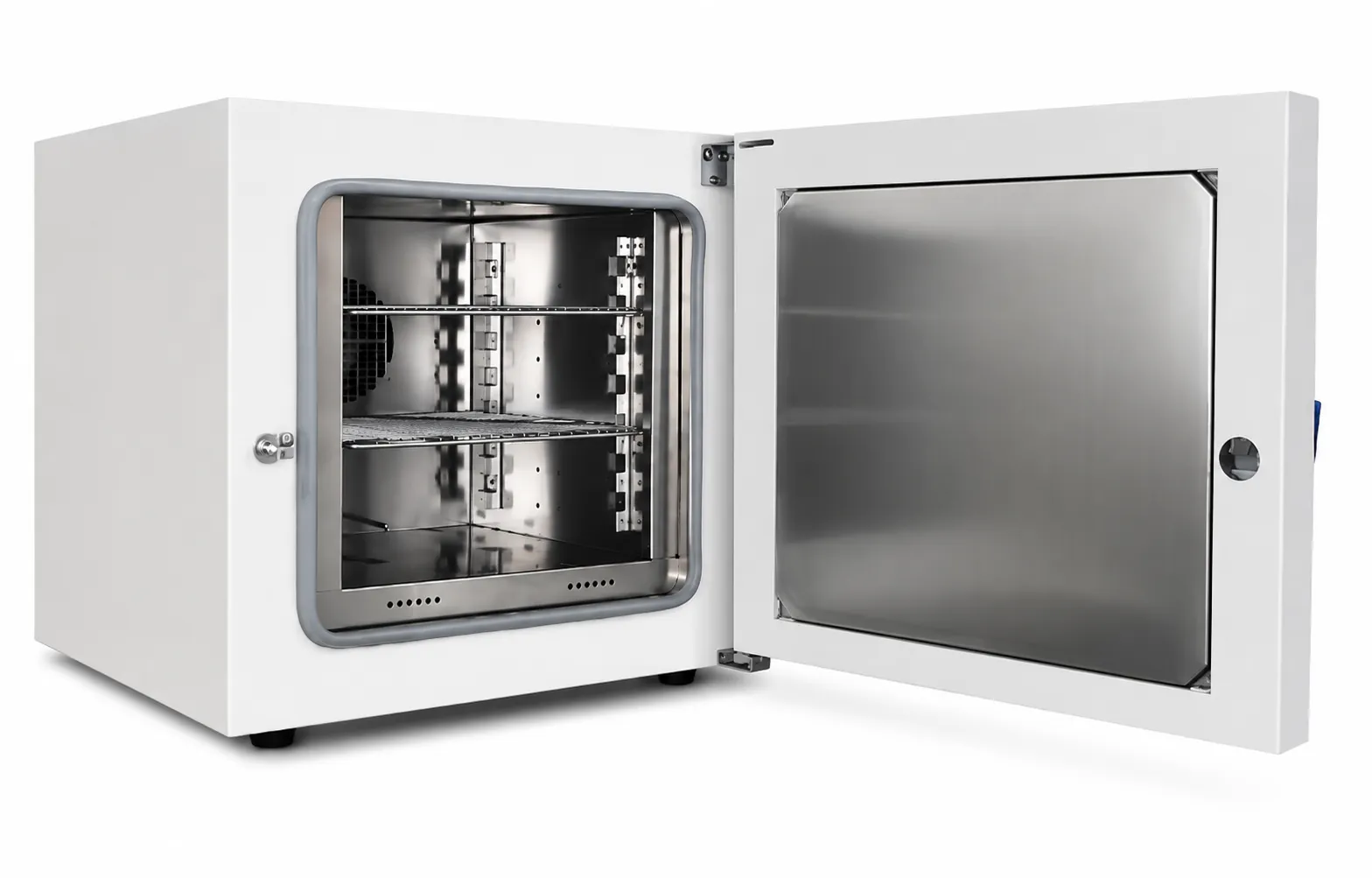

SUS304 Stainless Steel interior and ALLFLOW™ air current cycling

The SUS304 corrosion-resistant stainless steel interior, combined with ALLHEAT™ multi-sided preheating, ALLFLOW™ air current cycling keep temperature continuous and stable, the wind speed can be adjusted, ensures superior temperature uniformity and reduced energy consumption.

03.
Ergonomic design

Featuring arc-shaped design, integrated handle, LCD screen, adjustable mesh shelves, vertical structure, and double door for easy monitoring without compromising temperature stability.

04.

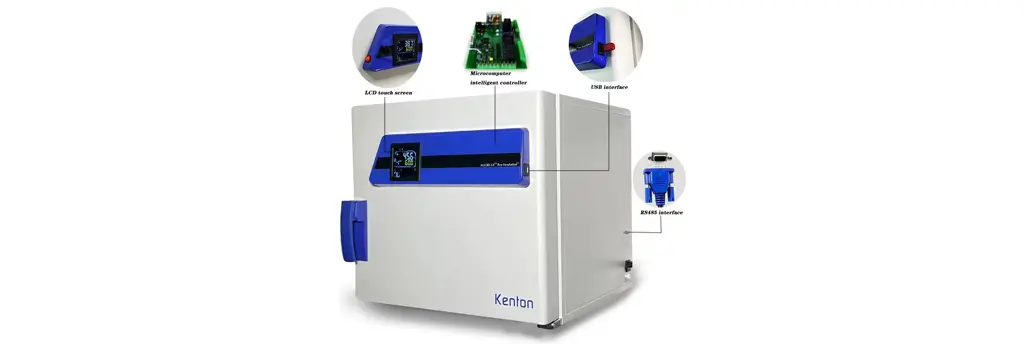

Microcomputer PID control touch screen

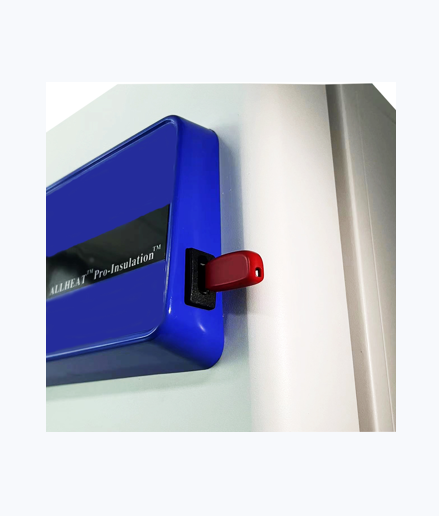

The integrated LCD touch screen offers precise temperature control, password protection, real-time monitoring, programmable segmented setting functions, and USB data storage.

/uploads/image/20250527/kenton-apparatus.webp

Specifications of GX Programmable Thermostatic Drying Oven



Specification
GX-40GX-70GX-130
Convection ModeForced convection with 5 adjustable fan-speed levelsForced convection with 5 adjustable fan-speed levelsForced convection with 5 adjustable fan-speed levels
Control SystemMicroprocessor PID controlMicroprocessor PID controlMicroprocessor PID control
Smart LCD Touchscreen DisplayProgrammable segmented settings with RS485/RS232 communicationProgrammable segmented settings with RS485/RS232 communicationProgrammable segmented settings with RS485/RS232 communication
TC Model Touchscreen4.3-inch touchscreen with USB interface for data storage4.3-inch touchscreen with USB interface for data storage4.3-inch touchscreen with USB interface for data storage
Temperature Range (°C)RT + 5°C to 300°CRT + 5°C to 300°CRT + 5°C to 300°C
Temperature Accuracy (°C)0.10.10.1
Temperature Fluctuation±0.5% within the range of 50–240°C±0.5% within the range of 50–240°C±0.5% within the range of 50–240°C
Temperature Uniformity (9-point test)1% within the range of 50–240°C1% within the range of 50–240°C1% within the range of 50–240°C
Heating Time / RateReaches 150°C within 30 minutesReaches 150°C within 30 minutesReaches 150°C within 30 minutes
Timer Range0–999 h or 0–9999 min, optional0–999 h or 0–9999 min, optional0–999 h or 0–9999 min, optional
Safety DeviceOver-temperature alarmOver-temperature alarmOver-temperature alarm
Working EnvironmentAmbient temperature: 10–30°C; relative humidity:<70%Ambient temperature: 10–30°C; relative humidity:<70%Ambient temperature: 10–30°C; relative humidity:<70%
Insulation MaterialHigh-density, environmentally friendly insulation materialHigh-density, environmentally friendly insulation materialHigh-density, environmentally friendly insulation material
External Dimensions (H × W × D, mm)570 × 580 × 593670 × 680 × 593770 × 780 × 693
Cavity Dimensions (H × W × D, mm)350 × 350 × 350450 × 450 × 350550 × 550 × 450
Cavity Volume (L)4070130
Cavity MaterialSUS304 stainless steelSUS304 stainless steelSUS304 stainless steel
Number of Standard Trays222
Shelf Load / Total LoadMaximum load per shelf: 20 kg; maximum total cavity load: 40 kgMaximum load per shelf: 20 kg; maximum total cavity load: 40 kgMaximum load per shelf: 20 kg; maximum total cavity load: 40 kg
Power (W)90011001400
Supply Voltage110/220 V, 50 Hz110/220 V, 50 Hz110/220 V, 50 Hz
Net Weight (kg)404865
Shipping Weight (kg)435169
Package Size (H × W × D, mm)690 × 660 × 680790 × 760 × 680890 × 860 × 780
