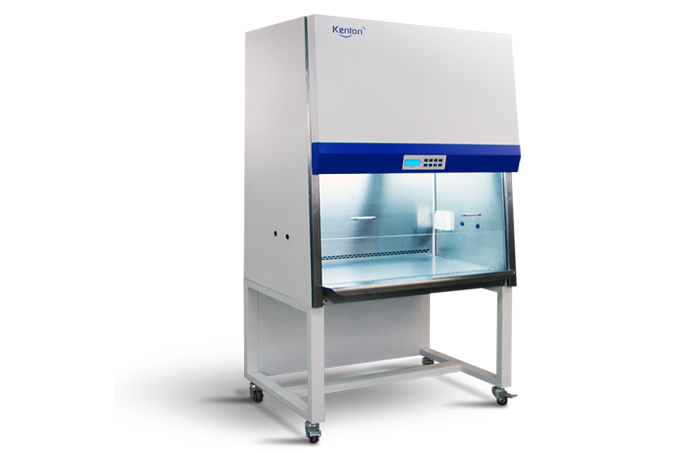

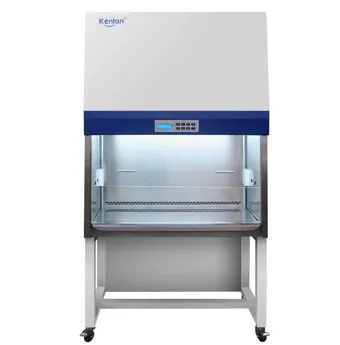

A2/B2 Biological Safety Cabinet

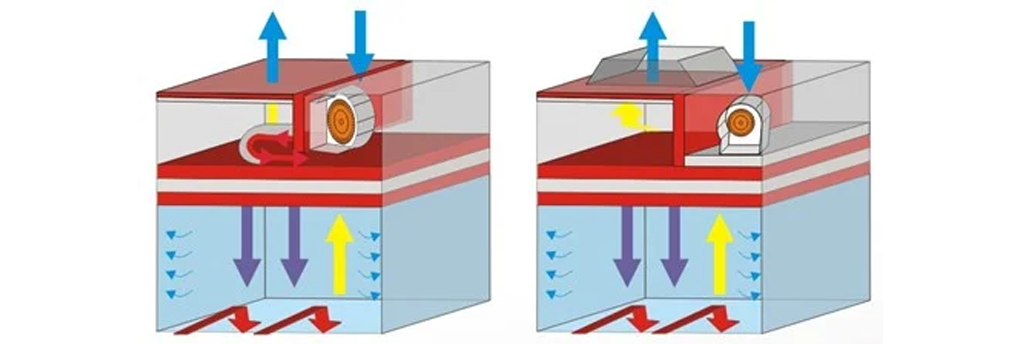

Kenton A2/B2 Biological Safety Cabinet ensure triple protection for operators, samples, and environments in biological labs. The A2 model recirculates 70% air (30% exhaust), while the B2 provides 100% exhaust, effectively containing hazardous particulates. Essential equipment for secure handling of toxic materials in research and clinical settings.

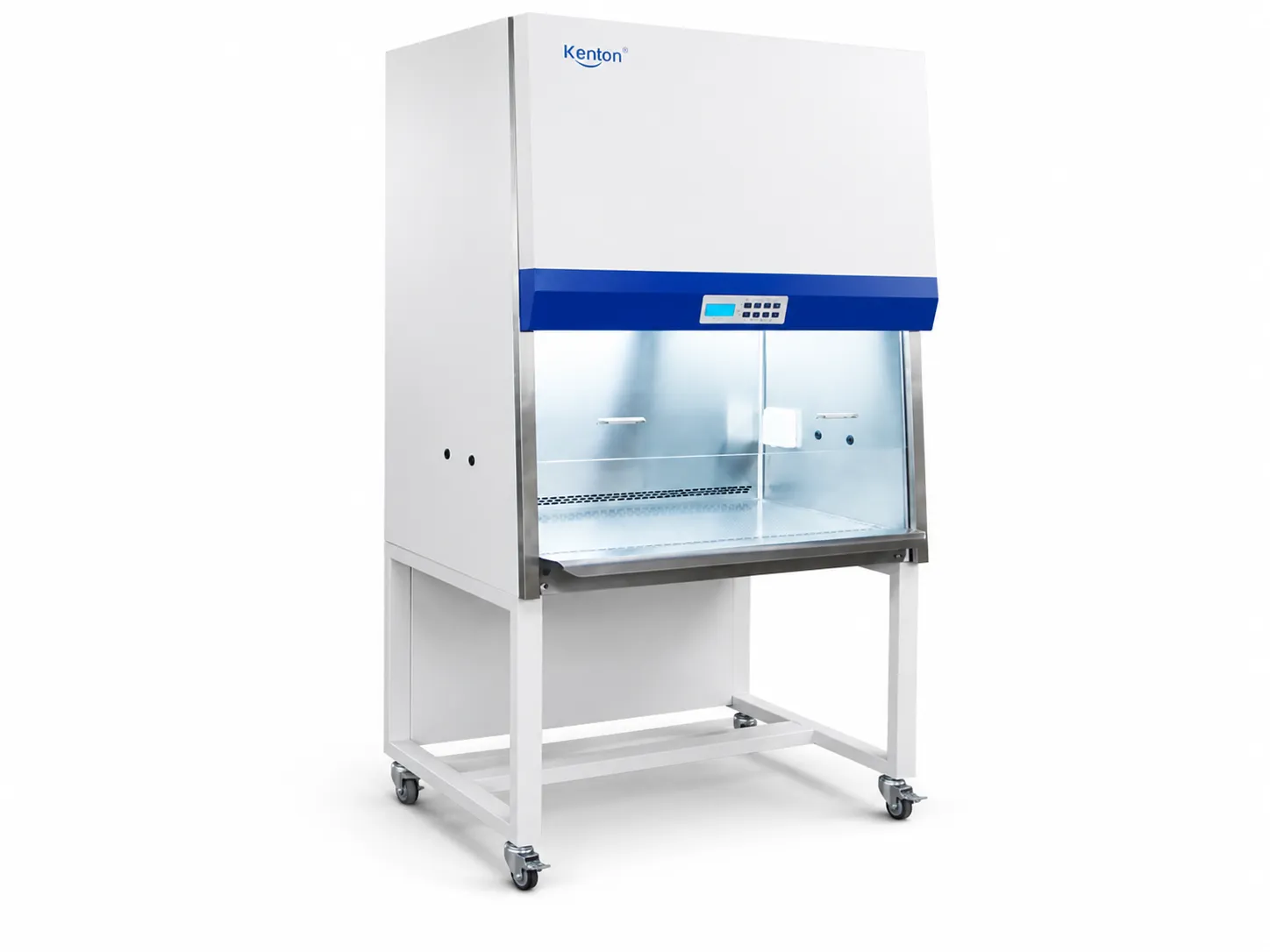

B2 Biological Safety Cabinet Front
A2/B2 Biological Safety Cabinet
A2/B2 Biological Safety Cabinet
A2/B2 Biological Safety Cabinet
A2/B2 Biological Safety Cabinet
Get A Quote
Get A Quote

Features of A2 Biological Safety Cabinet

01.
Advanced Safety Protection System

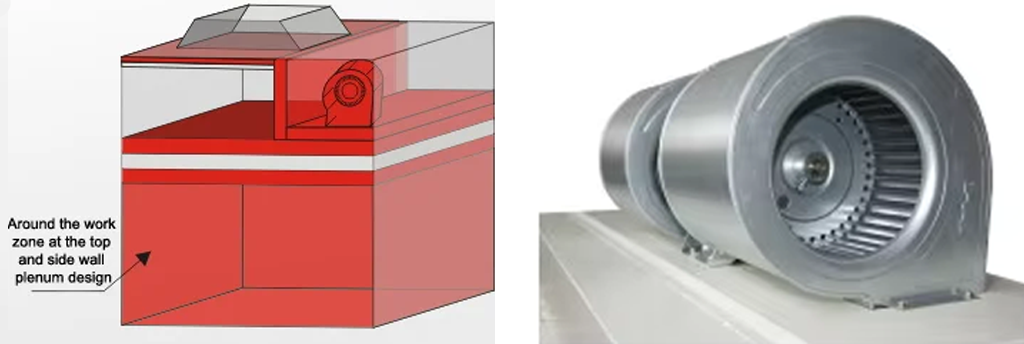

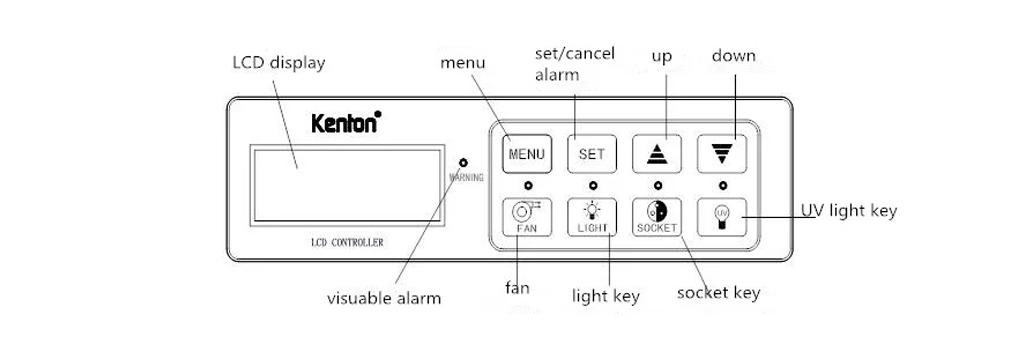

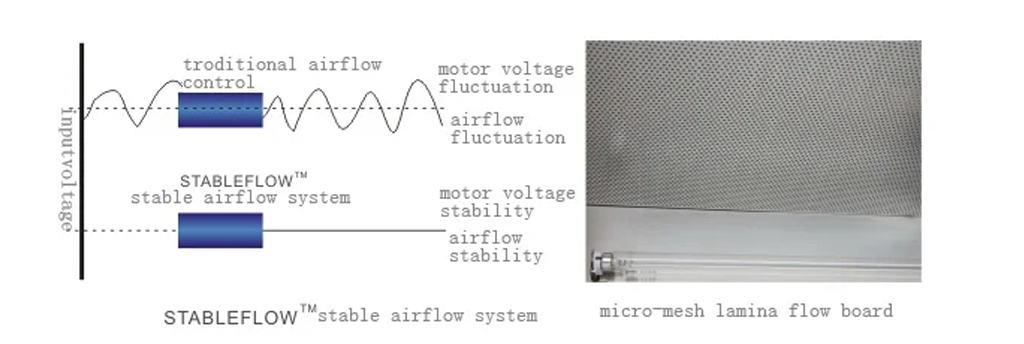

Equipped with HEPA filters and SAFELOGIC negative pressure containment technology, the cabinet ensures reliable protection for both samples and operators. The STABLEFLOW system maintains consistent airflow, while the BIOCASION LCD control panel provides precise monitoring for high-risk biological experiments.

02.
Compliance Standards & Certification

Meets international standards including YY0569-2005 (China), NSF/ANSI49-2008 (USA), and EN12469:2000 (EU), backed by 3-year warranty and CE certification, delivering reliable biosafety performance.

03.

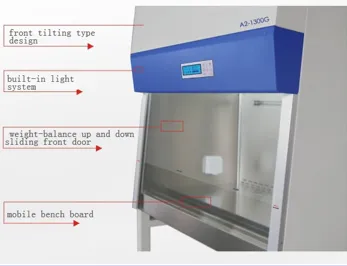

Ergonomic Design

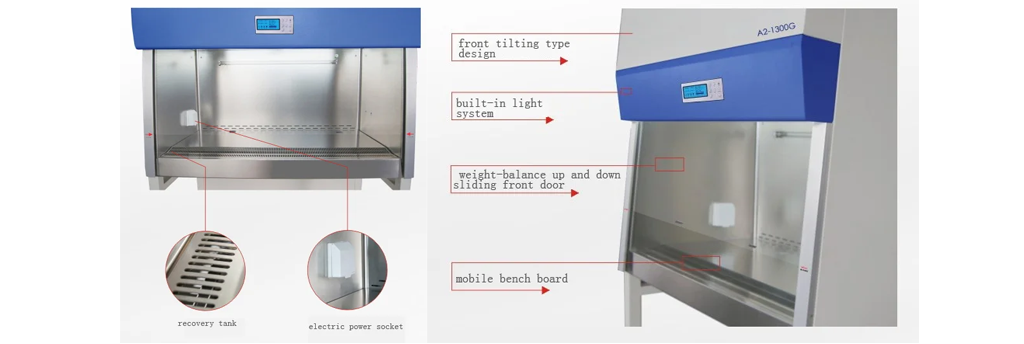

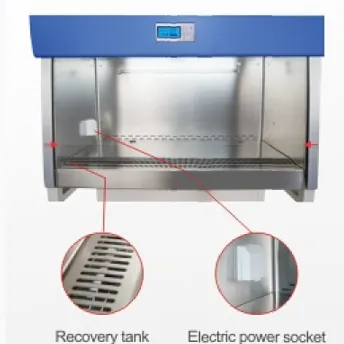

The front is tilted, the studio is equipped with a splash-proof power socket as standard, the front window is made of explosion-proof and UV-resistant tempered glass, the counterweight type can position the front door arbitrarily. The control panel is designed to be flipped outwards for easy maintenance, assembled tripod design for easy transportation.

/uploads/image/20250527/kenton-apparatus.webp

Specifications of A2 B2 Biological Safety Cabinet

ModelA2-1000G(D)A2-1300G(D)B2-1000G(D)B2-1300G(D)
Cleanliness ClassISO 14644-1 Class 5 (US Federal Standard 209E Class 100)ISO 14644-1 Class 5 (US Federal Standard 209E Class 100)ISO 14644-1 Class 5 (US Federal Standard 209E Class 100)ISO 14644-1 Class 5 (US Federal Standard 209E Class 100)
Inflow Velocity0.53 m/s0.53 m/s0.56 m/s0.56 m/s
Downflow Velocity0.35 m/s0.35 m/s0.35 m/s0.35 m/s
Downflow Velocity Accuracy±0.015 m/s±0.015 m/s±0.015 m/s±0.015 m/s
Noise Level≤65 dB≤65 dB≤65 dB≤65 dB
Vibration≤3 μm in X, Y, and Z directions≤3 μm in X, Y, and Z directions≤3 μm in X, Y, and Z directions≤3 μm in X, Y, and Z directions
HEPA / ULPA Filter EfficiencyD Series: HEPA 99.99%; G Series: ULPA 99.995%D Series: HEPA 99.99%; G Series: ULPA 99.995%D Series: HEPA 99.99%; G Series: ULPA 99.995%D Series: HEPA 99.99%; G Series: ULPA 99.995%
Light Intensity≥650 lx≥650 lx≥650 lx≥650 lx
Pressure Differential Range0 to 500 Pa0 to 500 Pa0 to 500 Pa0 to 500 Pa
Operating EnvironmentAmbient temperature: 10 to 30°C; relative humidity: <70%; no obvious vibration or dustAmbient temperature: 10 to 30°C; relative humidity: <70%; no obvious vibration or dustAmbient temperature: 10 to 30°C; relative humidity: <70%; no obvious vibration or dustAmbient temperature: 10 to 30°C; relative humidity: <70%; no obvious vibration or dust
External Dimensions (H x W x D, mm)2060 x 1130 x 7702060 x 1430 x 7702220 x 1190 x 7552210 x 1420 x 850
Working Zone Dimensions (H x W x D, mm)660 x 960 x 540660 x 1260 x 540650 x 945 x 600650 x 1245 x 600
Power SupplySingle-phase AC 220 V / 50 HzSingle-phase AC 220 V / 50 HzSingle-phase AC 220 V / 50 HzSingle-phase AC 220 V / 50 Hz
Power (W)300350300350
Net Weight (kg)175210175210
Gross Weight (kg)195235195235
Packing Dimensions (H x W x D, mm)1720 x 1200 x 11101780 x 1500 x 8401780 x 1200 x 8401780 x 1500 x 840
