KT Series Stackable Orbital Shaking Incubator

Specifications of KT Series Stackable Orbital Shaking Incubator

Optional Product Accessories:

1. Portable integrated data printer

2. Air inlet filter

3. ALLSENS^TM programmable software

4. Test port and gas interface

5. Dedicated clamps or adhesive pads

6. Platform amplitude (50 mm)

7. 90℃ high-temperature sterilization function

8. Top light panel with programmable segmented control (simulating day and night)

Portable integrated data printer		Air filter		Test port
ALLSENSTM programmable software			Top light panel

All technical data are measured under no-load conditions, ambient temperature 25℃ relative humidity 50% RH, voltage fluctuation ±10%, set test temperature 10°C/40°C, fully compliant with DIN 12880 standard requirements.

KENTON Apparatus Limited reserves the right to change the above technical specifications at any time. Product appearance may vary due to photography or printing. Thank you for your understanding.

Product manufactured according to relevant international standards:

Temperature Safety Standard: German DIN 12880 Class 3.1

Electrical Safety Standard: International IEC 61010-1; US UL 61010-1; EU EN 61010-1

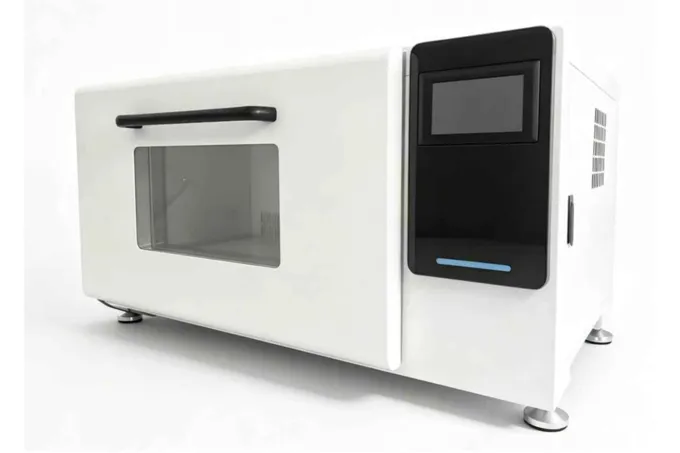

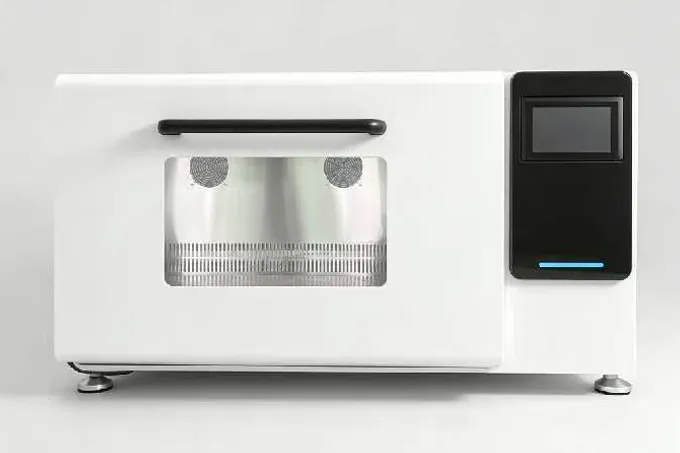

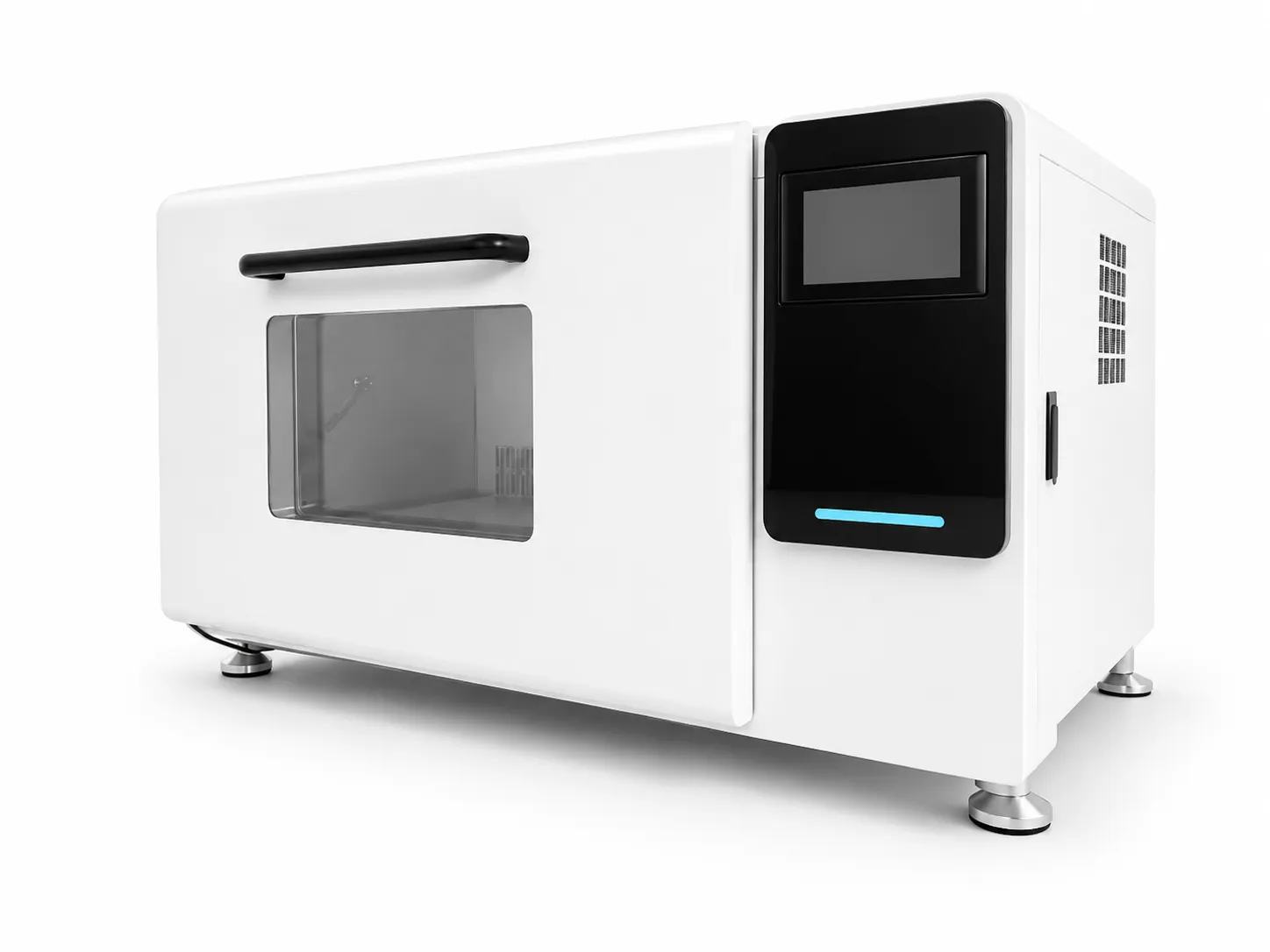

KT Series Stackable Orbital Shaking Incubator (Constant Temperature Shaker)

3-year warranty

• This "vertical stack" modular design maximizes laboratory space utilization. It is widely used in biomedical research, energy material development, and microbial cell culture, serving as essential equipment for laboratories and research institutions.

• The modular orbital shaking incubator provides a stable temperature environment with combined refrigeration, heating, and shaking functions, meeting the cultivation needs of cells, proteins, and other microorganisms.

• The 7-inch touch LCD screen features over-temperature alarms, automatic shaking stop when the door is opened, and a power-off recovery function to prevent data loss during outages.

• The three-in-one eccentric triple-wheel drive uses a self-balancing system design. The servo motor maintains effective stability at both high and low speeds. A built-in filter magnetic ring shields against external interference and enhances machine stability.

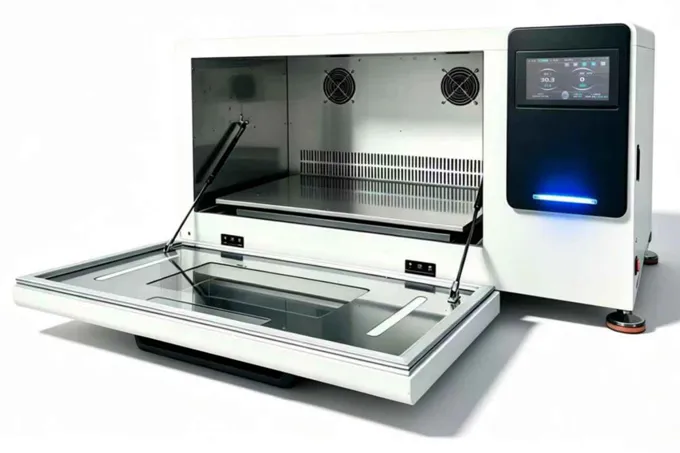

• The lower two layers have downward-opening doors and the third layer has an upward-opening door. Each layer independently controls temperature and speed, with settings adjustable as needed. The platform can be optionally fitted with adhesive pads, allowing flasks to be placed directly for shaking — convenient and fast.

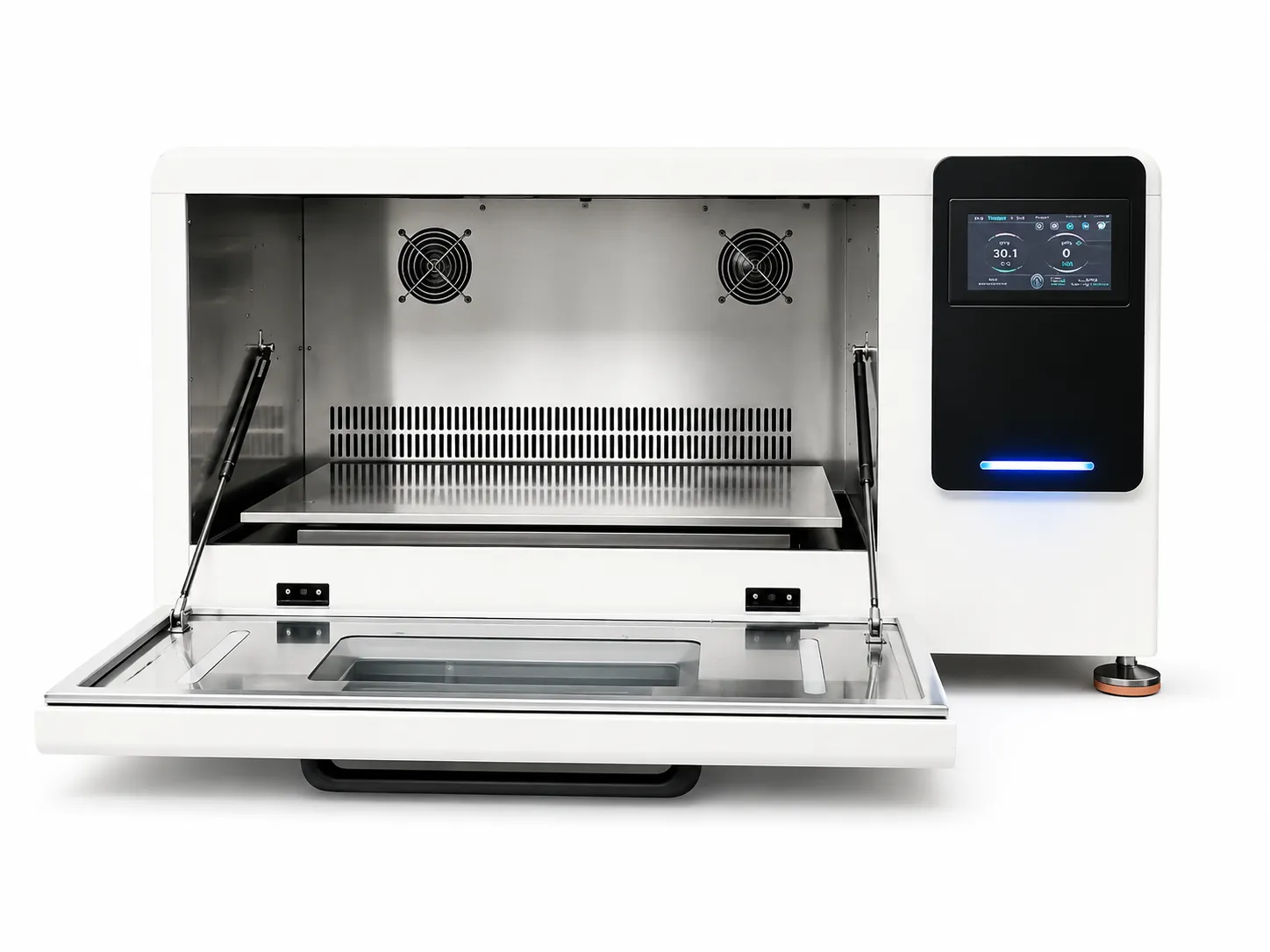

• The anti-fogging hollow glass door allows easy observation of the cavity. The SUS304 corrosion-resistant stainless steel cavity combined with an optimized airflow design ensures higher temperature uniformity. A water tray beneath the platform allows rinsing for easy cleaning.

• Side oxygenation ports meet sample oxygen requirements without opening the door. The unit features lighting and UV sterilization, uses a high-quality compressor with fluorine-free eco-friendly refrigerant, and operates with low noise and excellent cooling performance for stable long-term operation at low temperatures.

• Complies with national standards and is designed and manufactured in accordance with Australian AS3350, US FDA, EN, ICH, and related standards (cGMP/ICH/380/95/Q1A and Q1B), supporting long-term uninterrupted cultivation experiments.

• Chinese/English IQ, OQ, and PQ validation documents as well as third-party calibration and testing verification services are available.

• This product series has passed EU CE safety certification, complies with the Australian AS/NZS3350 standard, and comes with a 3-year quality warranty.

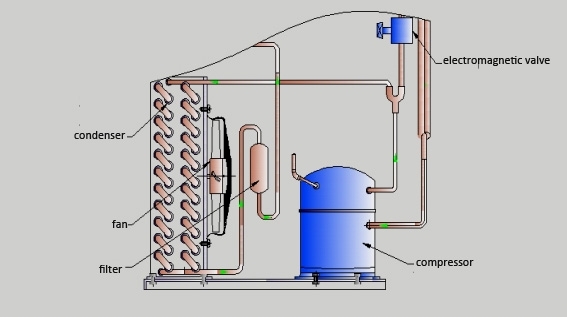

ALLCOLD^TM Refrigeration Technology

• Uses ALLCOLD^TM balanced refrigeration with a compressor, incorporating rapid heat-pump defrost technology, multi-level safety protection, meeting requirements for long-term operation and effectively solving the frosting problem caused by continuous evaporator operation;

• R290 eco-friendly refrigerant for a cleaner world and superior customer experience;

• Energy-saving design reduces operating costs.

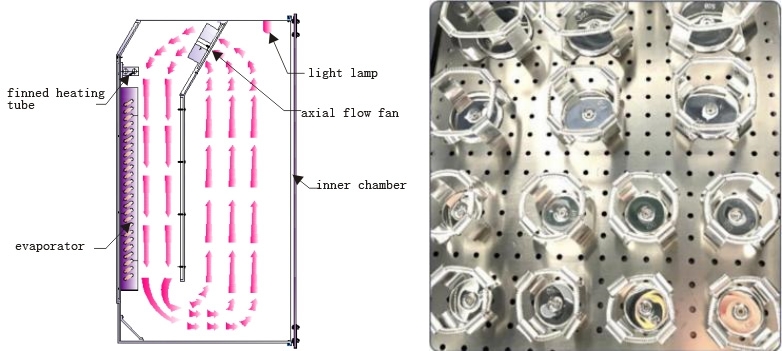

ALLFLOW^TM Airflow Circulation System

• The forced-airflow ALLFLOW^TM circulation system ensures more uniform sample temperature inside the incubator and guarantees rapid temperature recovery after the door is opened. Combined with a brand-name axial-flow fan and an optimized airflow design, sample cultivation results reach ideal outcomes.

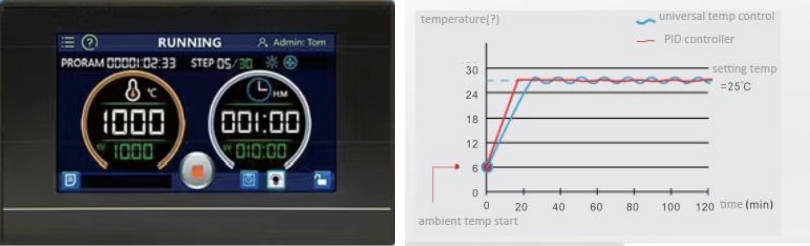

ALLSENS^TM Microcomouter PID Control Technology

• Programmable segmented control with a large LCD display — all parameters are visible at a glance. The user-friendly design provides a comprehensive status display covering: temperature measured value, temperature set value, alarm, refrigeration, heating, and lighting (sterilization) timed on/off operation.

• PID program control precisely regulates temperature, prevents overshoot, and maintains uniform, constant chamber temperature. Wide time settings to meet customer needs: 0–999 hours, 0–9999 minutes; the program can execute in automatic cycles.

• User password control with built-in data storage, USB interface, and RS485 interface for simultaneous connection to multiple devices for real-time monitoring.

• Remote control via software using the dedicated ALLSENSE^TM operating software.

• UV sterilization lamp function enables sterile cultivation inside the working chamber.

Superior Temperature Sensing Components

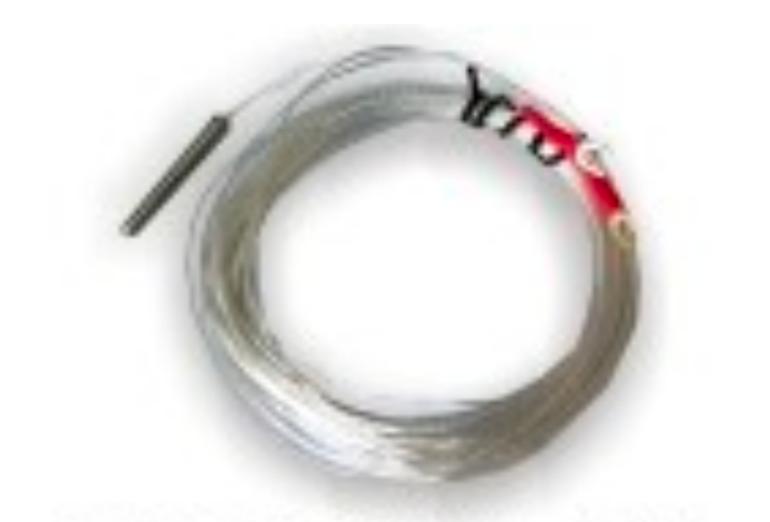

• PT100 temperature sensor with fast response to step temperature changes and minimal self-heating effect.



Efficient Insulation Design

• Double-layer thermal insulation design minimizes energy loss caused by internal/external temperature differences, supporting environmental conservation and energy saving.

Ergonomic Structural Design

• Modern laboratory color scheme and rounded arc design; the sliding pull-out platform makes operation more comfortable (see diagram).

• The outer door's modular design meets ergonomic requirements with a comfortable opening angle; when stacked, the door can be split top and bottom for easier sampling.

• Platform fixture spacing and quantity are designed for maximum capacity, making effective use of space. Various fixture combinations are also available per customer requirements to accommodate all kinds of experimental and cultivation items.

• Triple-layered glass observation window allows real-time monitoring of sample status inside the chamber without affecting thermal insulation performance.

Modern Manufacturing Process

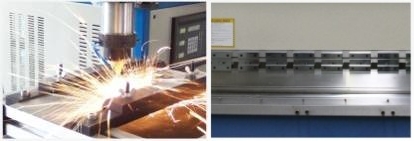

• All sheet metal parts are formed using laser cutting and CNC bending. Cold-rolled sheets undergo a three-step anti-rust acid treatment, and electrostatic powder coating gives the product an attractive appearance.

Easy Cleaning

• Seamless welding and bonding of the cavity, minimal joint design, and a built-in drain pipe allow direct water rinsing for easy cleaning and maintenance.

• The sliding pull-out platform is easy to clean.

Easy Maintenance

• The LCD microcomputer temperature controller has diagnostic functions, displaying various working status records including historical operation and temperature data.

• The main control unit and control panel are separated from the electrical components for easy maintenance and servicing.

Safety-Oriented Protection Design

• Multiple over-temperature protection functions with audible and visual alarms to alert users.

• Opening the door automatically stops platform vibration.

• Major electrical components are UL certified.

• Temperature protection device design complies with German DIN 12880 Class 3.1 standard; electrical safety complies with international IEC 61010-1, US UL 61010-1, and EU EN 61010-1 standards.
