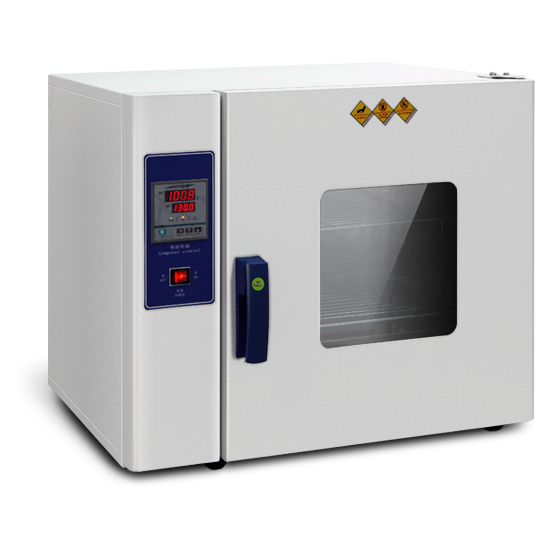

DHG Electric Heating Drying Oven
DHG Electric Heating Drying Oven

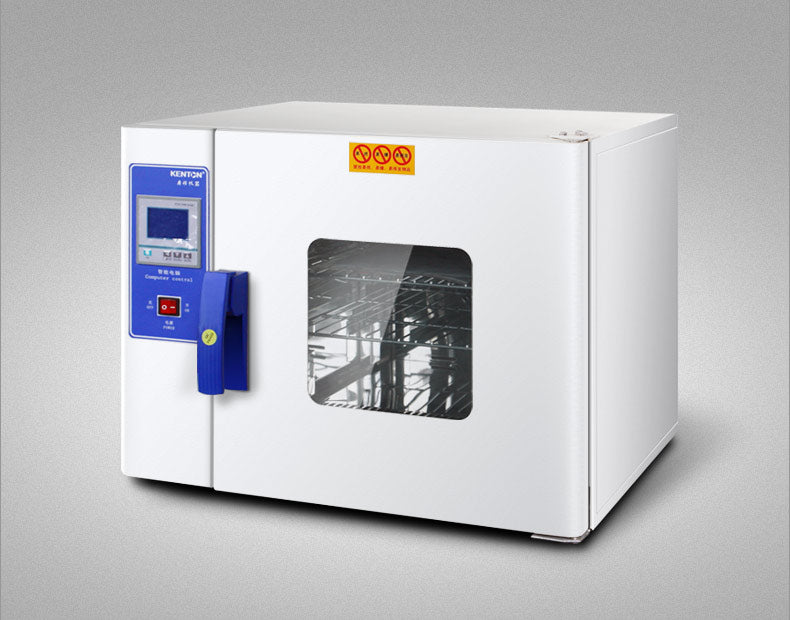

The Kenton manufactured Electric Heating Drying Oven is made with Intelligent PID control via microcomputer, precise temperature management with an LED display, timing, over-temperature alert, RS-485 computer interface, stainless steel inner mirror, anti-acid and anti-corrosion properties, hot air circulation system, and low maintenance requirements.

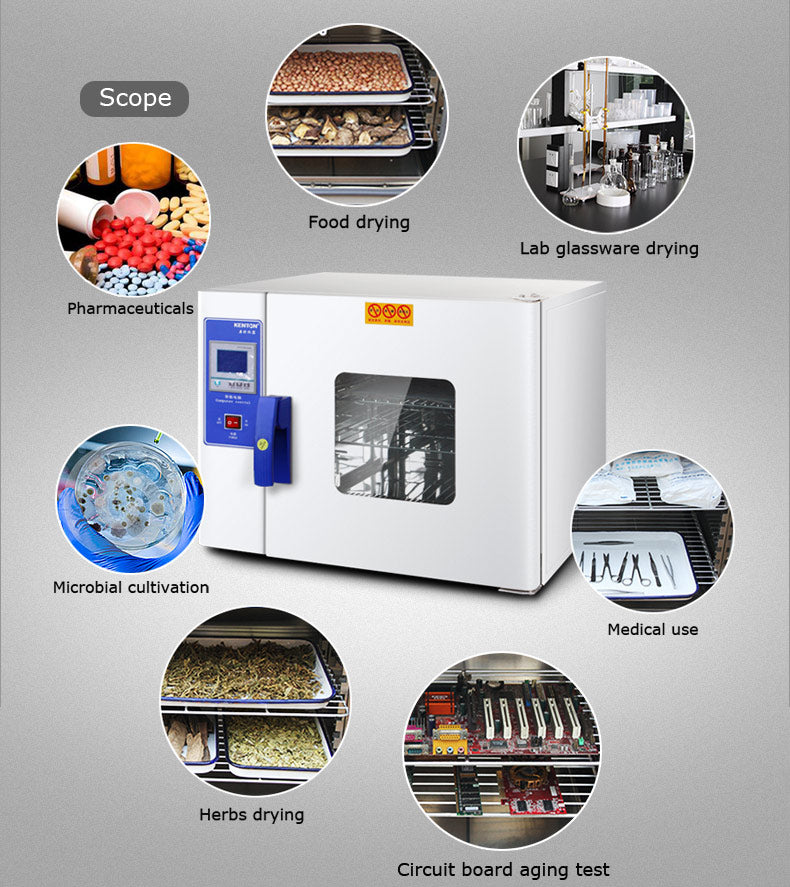

Widely employed in a variety of industries, including heat treatment, drying, sterilization, and thermostatic storage.
Ideal for users with higher needs for temperature uniformity. Use of the foundational laboratory research units' supporting equipment is advised for advanced and intermediate laboratories.
Product introduction:
● DHG Electric Heating Drying Oven is extensively utilized in many industries such as drying, sterilizing, thermostatic storage, heat treatment, and other areas. It should not be used with volatile, flammable, explosive, or other potentially explosive materials to prevent explosions.

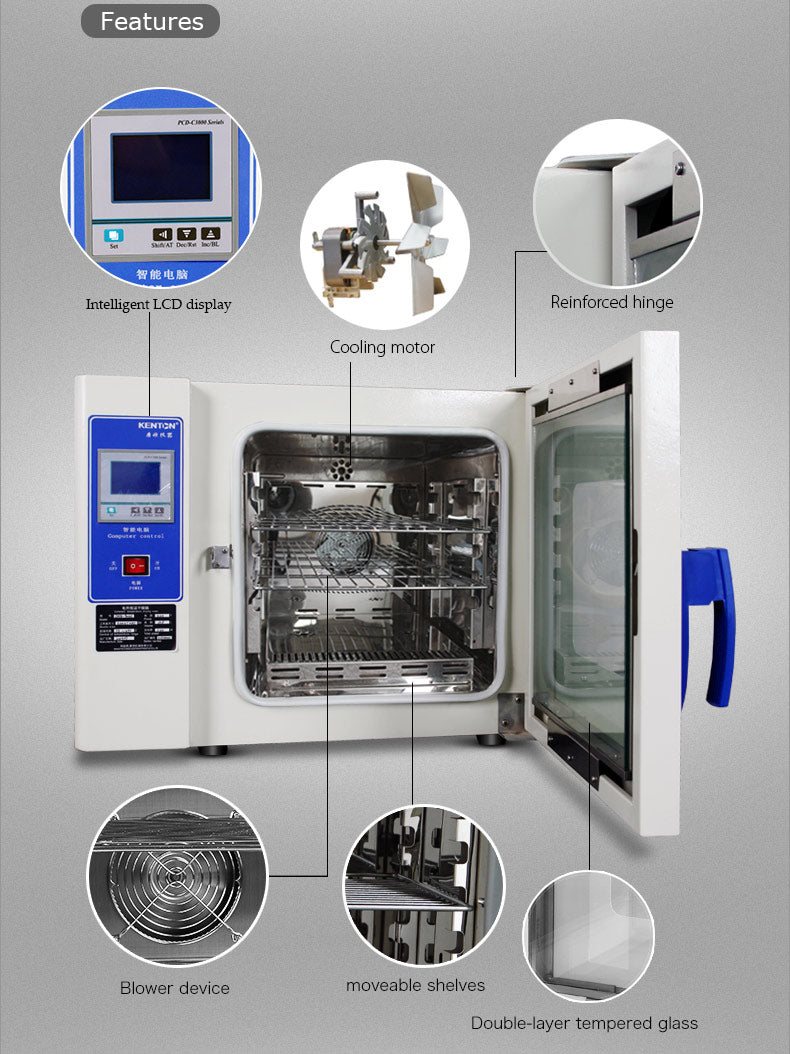

Feature:

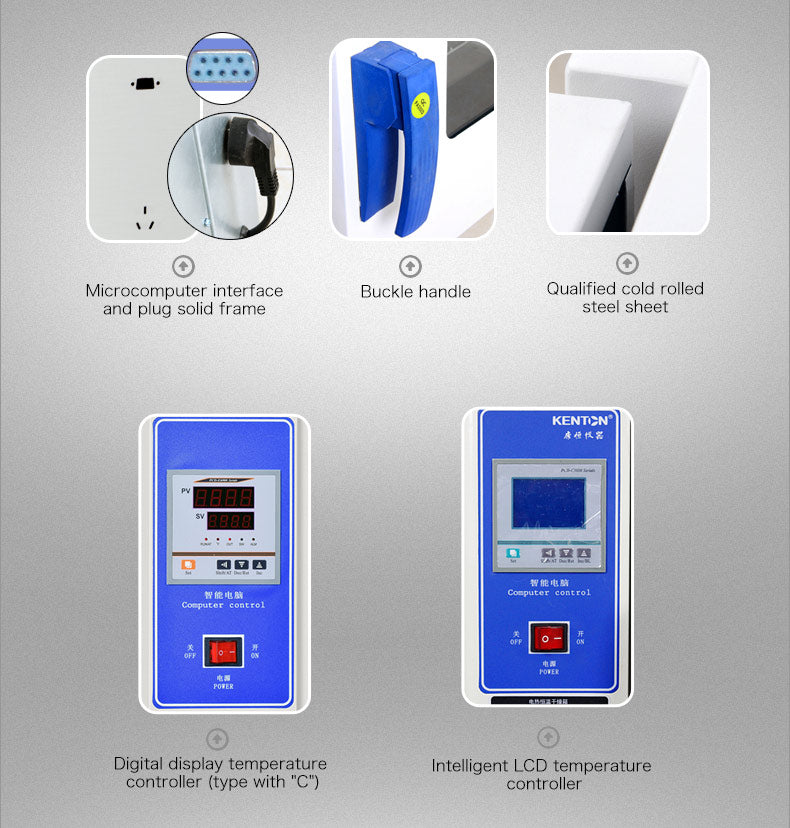

● The precision LCD microcomputer intelligent PID control system features an RS485 computer interface, temperature control, timing, and an over-temperature alarm.

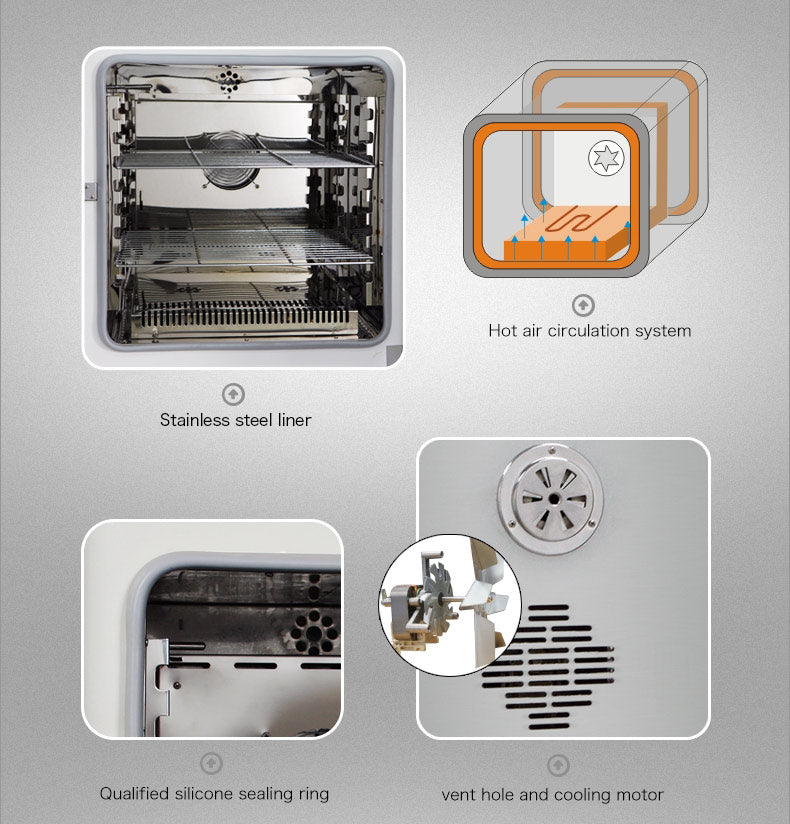

● With standard international brands, cooling fans are durable and require no maintenance. The ideal arrangement of ducts to guarantee the working chamber's temperature consistency.
● The inside mirror is made of stainless steel and has anti-corrosion, anti-acid properties.
Technical Parameters:
Model |
Temp
range (℃)
|
Accuracy (℃) |
Fluctuation (%) |
Voltage (V) |
Power (KW) |
Overall dimension (mm) (H*W*D) |
Packing size (mm) (H*W*D) |
Net weight
(KG)
|
Shiping weight (KG) |
DHG-9040 |
RT+5 ~250 |
±0.1 | ±1 | 220 | 1 | 530*640*550 | 650*720*630 | 36 | 39 |
DHG-9070 |
RT+5 ~250 |
±0.1 | ±1 | 220 | 1.2 | 630*740*550 | 750*820*630 | 47 | 50 |
DHG-9130 |
RT+5 ~250 |
±0.1 | ±1 | 220 | 1.6 | 750*890*630 | 870*970*710 | 62 | 66 |
DHG-9230 |
RT+5 ~250 |
±0.1 | ±1 | 220 | 2.5 | 980*965*770 | 1100*1045*850 | 96 | 105 |
DHG-9040C |
RT+5 ~250 |
±0.5 | ±1 | 220 | 1 | 530*640*550 | 650*720*630 | 36 | 39 |
DHG-9070C |
RT+5 ~250 |
±0.5 | ±1 | 220 | 1.2 | 630*740*550 | 750*820*630 | 47 | 50 |
DHG-9130C |
RT+5 ~250 |
±0.5 | ±1 | 220 | 1.6 | 750*890*630 | 870*970*710 | 62 | 66 |
DHG-9230C |
RT+5 ~250 |
±0.5 | ±1 | 220 | 2.5 | 980*965*770 | 1100*1045*850 | 96 | 105 |
