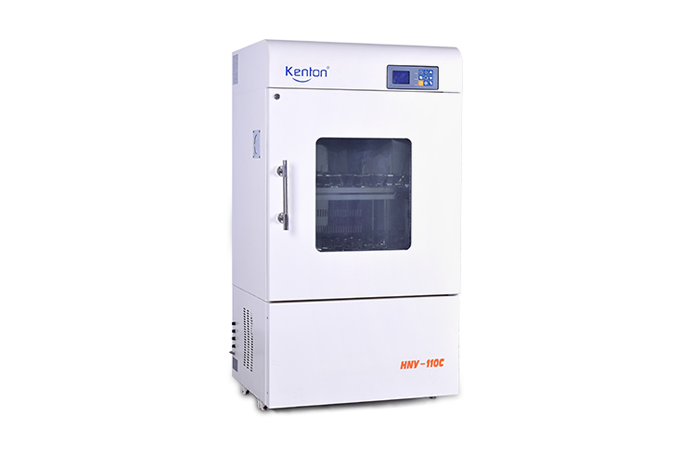

Kenton HNY Shaker Incubator (vertical type) provide versatile oscillation and temperature control for cultivating liquids/solids in microbial, biochemical, and medical research. Ideal for universities, petrochemical labs, and environmental agencies, these units combine precise thermostatic incubation with adjustable shaking functions for diverse scientific applications.
Features programmable PID touchscreen with ±0.1°C temperature accuracy, RS485 interface for networked control, and safety functions including motor overheat protection and automatic stop when opened.
Servo motor delivers silent, maintenance-free operation with superior low-speed performance (30-300rpm stepless adjustment). Triaxial drive design ensures smooth operation at 26mm standard amplitude (50mm optional).

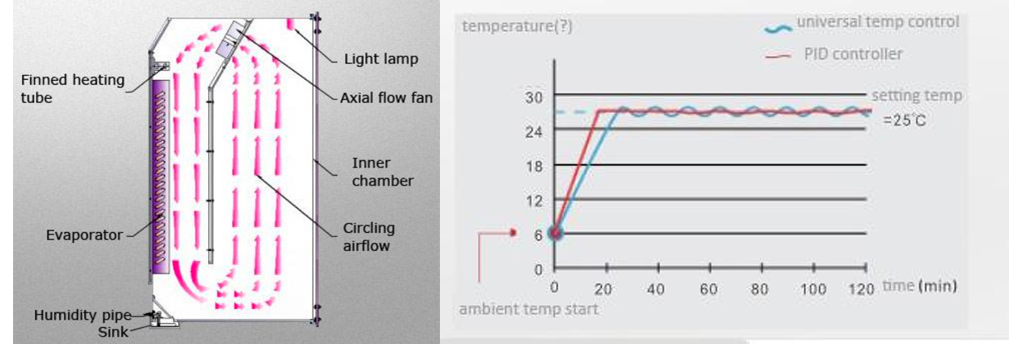

SUS304 stainless steel cavity with oxygenation ports and forced-air convection maintains uniform conditions. Includes UV sterilization and illuminated viewing window.
| Model | HNY shaking incubator | |||
| HNY-110 | HNY-210 | HNY-110C | HNY-210C | |
| Internal Dimensions (mm) (H×W×D) | 640x600x460 | 640x810x560 | 640x600x460 | 640x810x560 |
| External Dimensions (mm) (H×W×D) | 1390x730x635 | 1390x950x735 | 1390x730x635 | 1390x950x735 |
| Nominal Power (KW) | 0.8 | 0.9 | 1.2 | |
| Power Supply Voltage | Single-phase AC 220V/50Hz | |||
| Temperature Range (°C) | Room temperature +5°C to 65°C (without cooling) | 4°C to 65°C (with cooling and heating) | ||
| Shaking Method | Rotary (Cyclical) | |||
| Amplitude and Shaking Speed | ⌀26mm 20-300r/min | |||
| Accuracy (°C) | ±0.1 | |||
| Temperature Fluctuation (°C) | ±0.5% | |||
| Number of Layers (Shelves) | 2 | |||
| Rack Dimensions (mm) (H×W×D) | Model 110: 340x500x350/Model 210: 340x730x455 | |||
| Standard Bottle Holder | Model 110: Upper layer with 18 bottle clips (250), lower layer with adhesive board or universal spring. | |||
| Model 210: Upper layer with 32 bottle clips (250), lower layer with adhesive board or universal spring. | ||||
| Note | The size and quantity of bottle clips can be provided in various options (see the table below) | |||
| Model | Bottle clip options (maximum quantity) |
| HNY-110（C） | 50ML(56 units), 100ML(56units), 250ML(36units), 500ML(24units) |
| HNY-210（C） | 50ML(104units), 100ML(104units), 250ML(64units), 500ML(56units), 1000ML(30units) |
