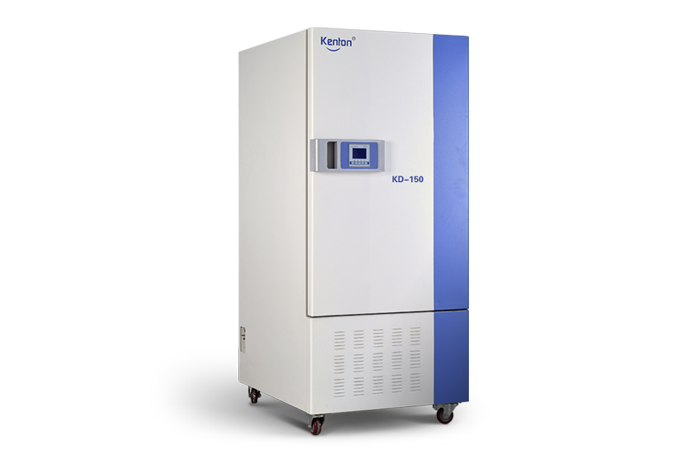

Kenton KD/KL/KG Medical Stability Test Chamber provides precise environmental control for drug stability testing, meeting cGMP/FDA/ICH standards. Featuring dual cooling/heating systems, programmable touchscreen controls, and RS485 connectivity. SUS304 stainless cavity with built-in humidification ensure uniform conditions for accelerated/long-term studies. Includes validation services (IQ/OQ/PQ) and 2-year CE-certified warranty.
Meets Chinese Pharmacopoeia, GB/T10586-2006, and international standards (FDA/EN/ICH/cGMP) for drug stability testing under programmed temperature/humidity/light conditions. Features silicone test ports for monitoring.

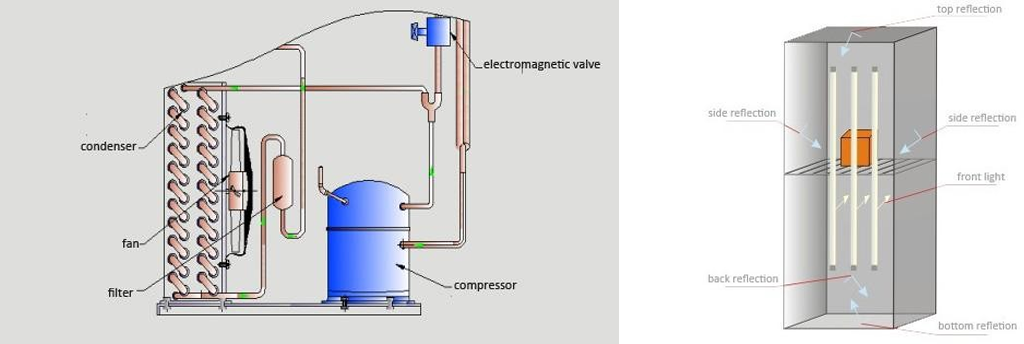

Dual cooling/heating system with PID touchscreen and RS485 interface enables multi-segment programming (±0.5°C). ALLSENS software supports remote monitoring of connected units.

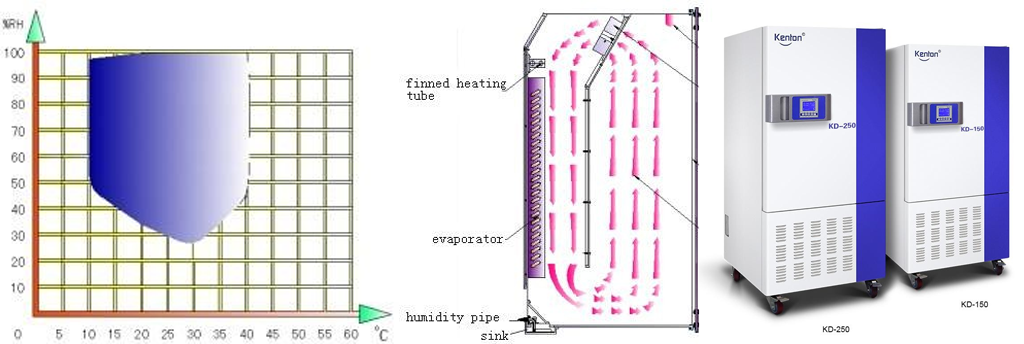

KD/KG models: Built-in humidification outperforms external systems in stability/high-humidity performance. KL/KG models: Pro-Bright lighting with thermal compensation maintains ±0.3°C during illumination.
| KD | KL | KG | |||||||
| Product Model | KD-150 | KD-250 | KD-400 | KL-150 | KL-250 | KL-400 | KG-150 | KG-250 | KG-400 |
| Convection Mode | Forced Convection | ||||||||
| Control System | Programmable microcomputer PID intelligent touch screen automatic control system | ||||||||
| Temp. Range | 0~65℃ | 10~65℃(with lighting)/0~60℃(without lighting) | |||||||
| Temp. Accuracy | 0.1℃ | ||||||||
| Temp. Fluctuation | ±0.5℃ | ||||||||
| （10-40℃） | |||||||||
| Temp. Uniformity | ±1℃ | ||||||||
| （10-40℃） | |||||||||
| Humidity Range | Humidity Range：40~95%RH， Humidity Fluctuation：±2%RH | Humidity Range：40~95%RH， Humidity Fluctuation：±3%RH | |||||||
| Illumination Range | 0~6000LX（five stages adjustable） | ||||||||
| Working environment | Ambient temperature：10~30℃, Humidity <70% | ||||||||
| Insulation materials | Environmental protection type material | ||||||||
| External Dimensions (mm) (H×W×D) | 1410×650×680 | 1730×650×740 | 1700×745×930 | 1410×650×680 | 1730×650×740 | 1700×745×930 | 1410×650×680 | 1730×650×740 | 1700×745×930 |
| Cavity Dimensions (mm) (H×W×D) | 760×510×390 | 1100×510×450 | 1050×600×640 | 760×510×390 | 1100×510×450 | 1050×600×640 | 760×510×390 | 1100×510×450 | 1050×600×640 |
| Cavity Volume(L) | 150 | 250 | 400 | 150 | 250 | 400 | 150 | 250 | 400 |
| Cavity steel materials | SUS304 stainless steel | ||||||||
| Power Consumption (W) | 1080 | 1100 | 1350 | 1080 | 1100 | 1350 | 1080 | 1100 | 1350 |
| Power supply | AC220V/110V | ||||||||
| Net Weight(KG) | 107 | 135 | 158 | 107 | 135 | 158 | 107.5 | 136 | 158.5 |
| Shipping Weight(KG) | 132 | 162 | 186 | 132 | 162 | 186 | 133 | 162.5 | 188 |
