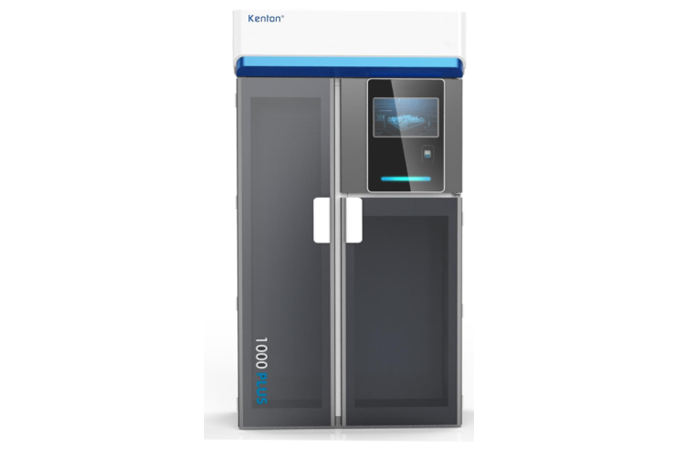

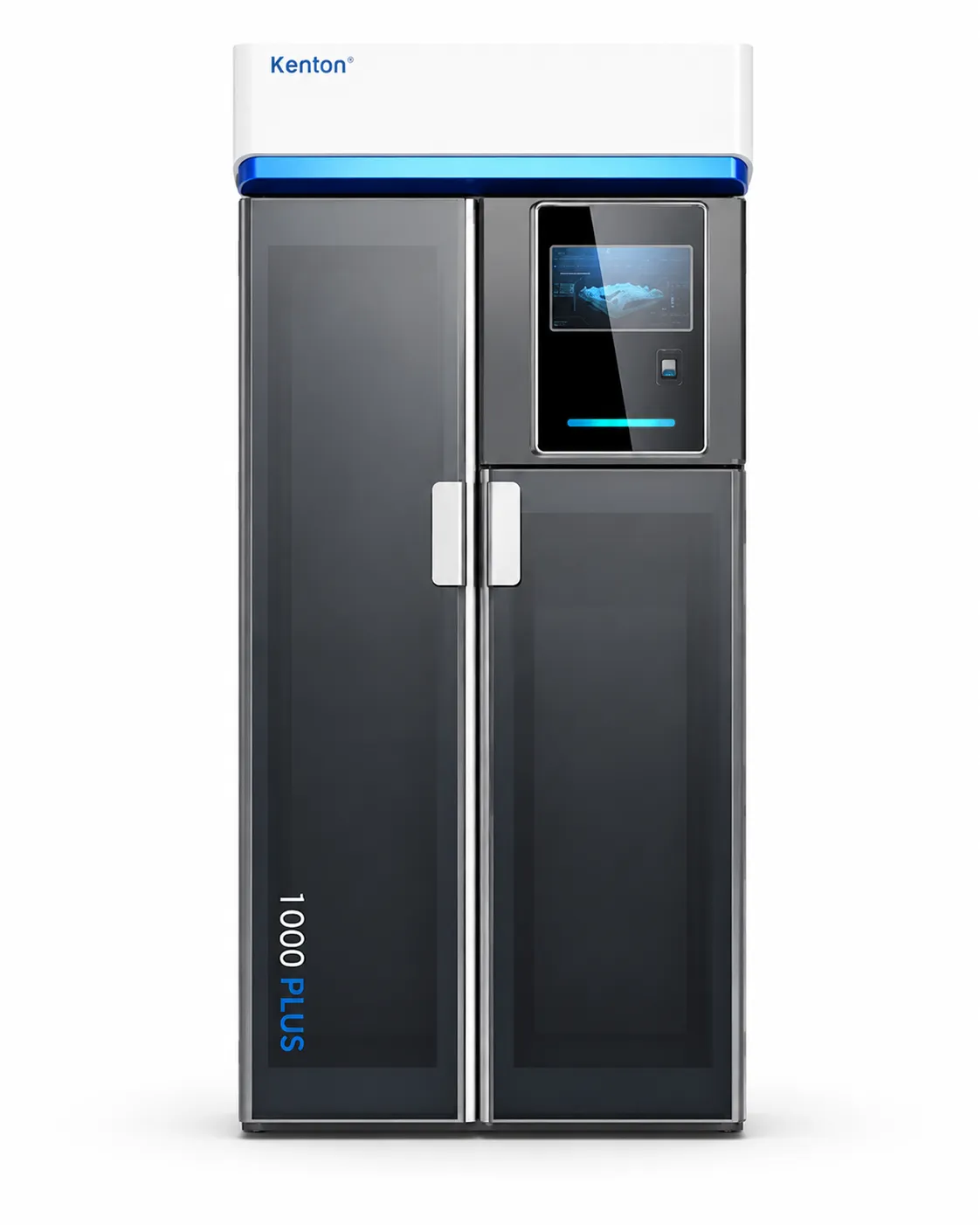

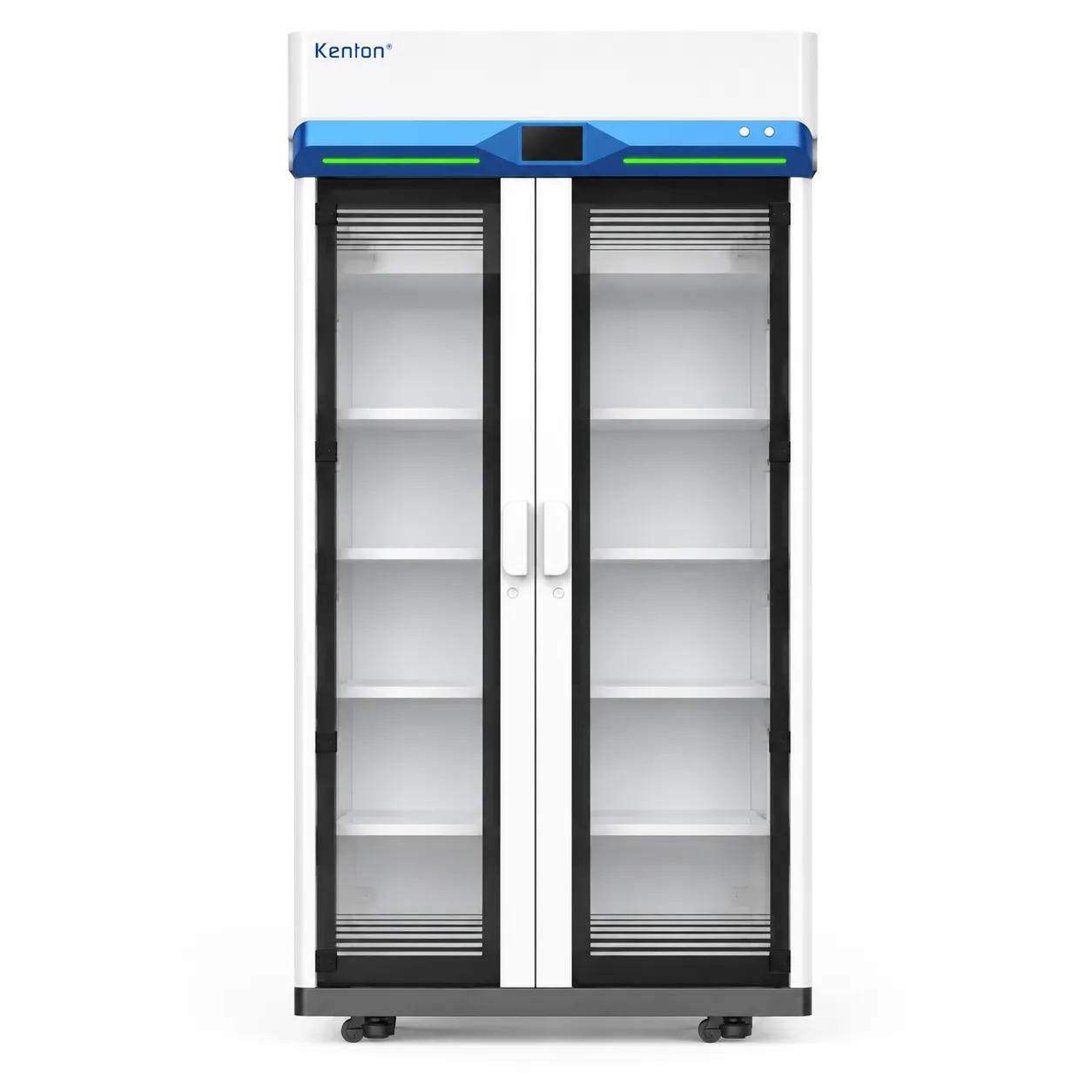

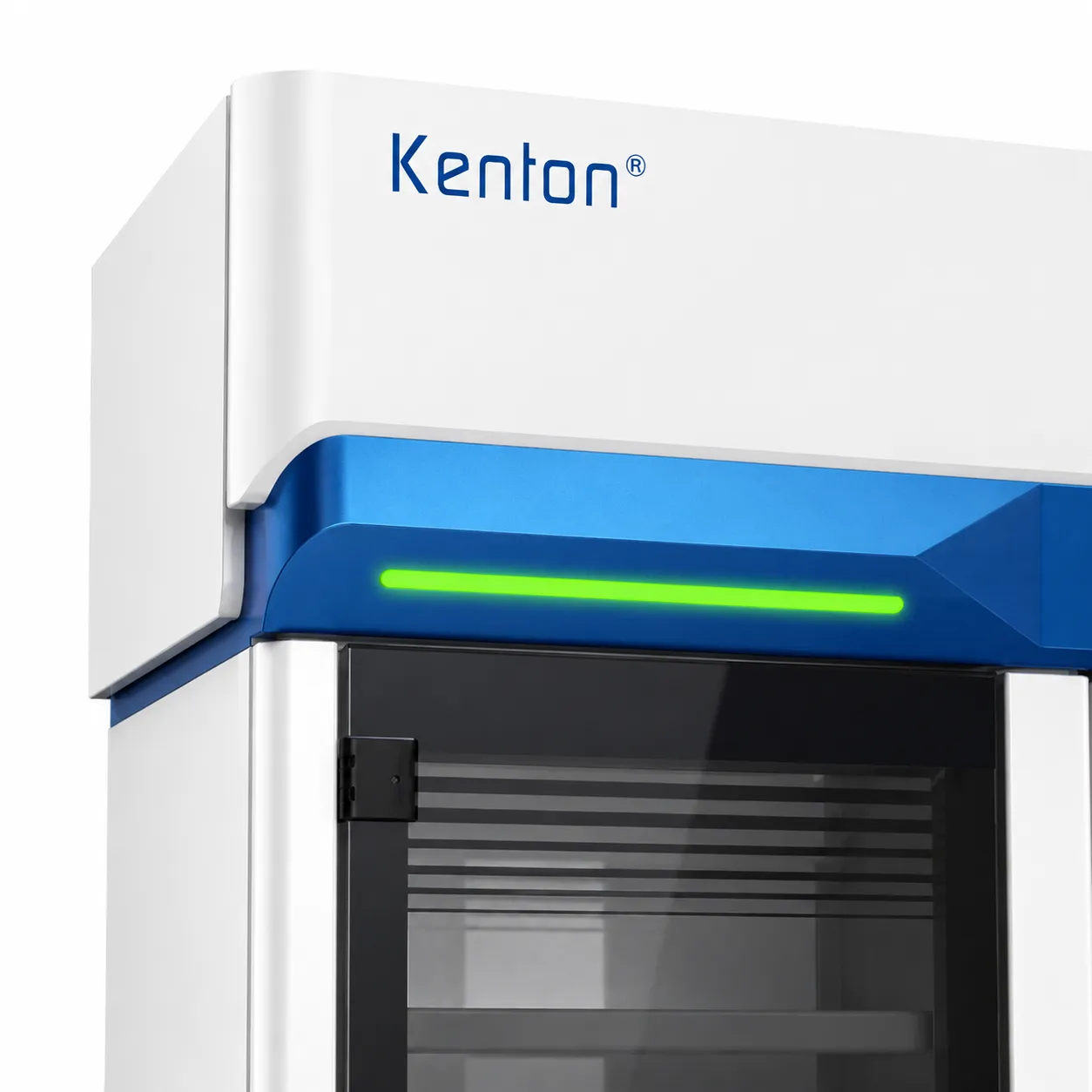

Kenton CM Ductless Filtered Storage Cabinet feature ergonomic designs with intelligent control systems and U.S. Purolite filters. Utilizing European-grade components, they ensure safe chemical storage, personnel protection, and reduced lab ventilation costs for optimized experimental workflows. 3-year warranty.
Equipped with Purafil gas-phase filtration technology to effectively adsorb over 230 types of hazardous gases (formaldehyde, VOCs, acidic gases). Modular filters allow customization for organic/inorganic chemicals, with real-time TVOC humidity temperature monitoring, providing real-time data analysis to assess air quality inside the cabinet, it precisely regulates the fan speed to achieve optimal air exchange and pollutant purification.
Eliminates ductwork and external exhaust systems, saving initial costs and per year in operational expenses. Recirculates purified air without HVAC compensation.
Dual-door/dual-lock design (PLUS model adds fingerprint authentication) ensures controlled access. PLUS is equipped with 10.1-inch touch display and optical fingerprint module. It has 8GB of internal storage, and can store at least 365 days of historical records. It features built-in wireless network card and optional customizable 4G communication module.
Stainless steel (SUS304) or coated galvanized steel cabinets to resist corrosion. Integrated injection-molded filters/fans ensure 60,000-hour lifespan.
Product Specifications | CM-1000 (Applicable for Conventional and Organic Chemicals) | CM-1000S (Applicable for Inorganic Acids and Strong Acids/Bases) | CM-1000PLUS (Applicable for Controlled Substances,Hazardous Chemicals,and Highly Toxic Materials) |
Control System | 4.3 Inch LCD Screen | 4.3 InchLCD Screen | 10.1 Inch touch LCD screen |
Voltage/Frequency | 100-240V/50-60HZ | ||
Environment Temp. | 5~40℃;Relative Humidity:45%～~`75% | ||
Cabinet Material | Galvanized steel plate with surface coating | 304stainless steel plate with surface coating | Galvamized steel plate withsurface coating |
Number of Doors | Dual doors with dual locks | Dual doors with dual locks | Three-door with dual fingerprint locks |
Intemal Dimensions (H*W*D)mm | 1600*900*500 | 1600*900*500 | 1800*900*500 |
Extemal Dimensions (H*W*D)mm | 2000*1000*530 | 2000*1000*530 | 2200*1000*540 |
Number of Shelves | 10 | ||
Shelf Weight Capacity | ≥80kg/m² | ||
Storage Capacity | ≥ 200 bottles(each 0.50L) | ||
Air Handling Capacity | ≥220m³/h | ||
Air replacement frequency | ≥ 180 times/hour | ||
