Kenton Stability Test Chamber provides precise environmental control for pharmaceuticals stability testing, meeting cGMP/FDA/ICH standards. Featuring dual cooling/heating systems, programmable touchscreen controls, storage with USB interface and RS485 connectivity. SUS304 stainless cavity with built-in humidification ensure uniform conditions for accelerated/long-term studies. As a specialist humidity test chamber manufacturer, we also offer full validation services (IQ/OQ/PQ), a 3-year warranty, and CE certification — giving you the compliance assurance you need.

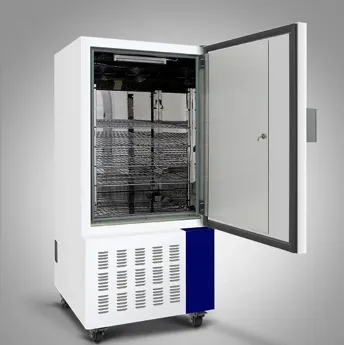

8FJ_SGR.webp "Drug test chamber")
Kenton stability test chamber meets international pharmaceutical standards (FDA/EN/ICH/cGMP) for programmed temperature, humidity and light stability testing. Features silicone test hole for monitoring.
Dual cooling/heating system with PID touchscreen and RS485 interface enables multi-segment programming (±0.5°C). ALLSENS software supports remote monitoring of connected units.
KD/KG stability test chambers: Built-in humidification system design, more uniform, also can meet the high humidity setting.
KL/KG stability test chambers: Pro-Bright lighting with thermal compensation maintains ±0.3°C during illumination.
| KD Stability Test Chamber | KL Stability Test Chamber | KG Stability Test Chamber | |||||||
| Product Model | KD-150 | KD-250 | KD-400 | KL-150 | KL-250 | KL-400 | KG-150 | KG-250 | KG-400 |
| Convection Mode | Forced Convection | ||||||||
| Control System | Programmable microcomputer PID intelligent touch screen automatic control system | ||||||||
| Temp. Range | 0~65℃ | 10~65℃(with lighting)/0~60℃(without lighting) | |||||||
| Temp. Accuracy | 0.1℃ | ||||||||
| Temp. Fluctuation（10-40℃） | ±0.5℃ | ||||||||
| Temp. Uniformity（10-40℃） | ±1℃ | ||||||||
| Humidity Range | Humidity Range：40~95%RH， Humidity Fluctuation：±2%RH | Humidity Range：40~95%RH， Humidity Fluctuation：±3%RH | |||||||
| Illumination Range | 0~6000LX（five stages adjustable） | ||||||||
| Working environment | Ambient temperature：10~30℃, Humidity<70% | ||||||||
| Insulation materials | Environmental protection type material | ||||||||
| Shelf plates | 2 | 4 | 4 | 2 | 4 | 4 | 2 | 4 | 4 |
| Shelf plate load total load | Each shelf does not exceed 25 kg, and the total load of the inner tank is 90 kg | ||||||||
| External Dimensions(mm) (H×W×D) | 1410×650×680 | 1730×650×740 | 1700×745×930 | 1410×650×680 | 1730×650×740 | 1700×745×930 | 1410×650×680 | 1730×650×740 | 1700×745×930 |
| Cavity Dimensions(mm) (H×W×D) | 760×510×390 | 1100×510×450 | 1050×600×640 | 760×510×390 | 1100×510×450 | 1050×600×640 | 760×510×390 | 1100×510×450 | 1050×600×640 |
| Cavity Volume(L) | 150 | 250 | 400 | 150 | 250 | 400 | 150 | 250 | 400 |
| Cavity steel materials | SUS304 stainless steel | ||||||||
| Power Consumption (W) | 1080 | 1100 | 1350 | 1080 | 1100 | 1350 | 1080 | 1100 | 1350 |
| Power supply | AC220V/110V | ||||||||
| Net Weight(KG) | 107 | 135 | 158 | 107 | 135 | 158 | 107.5 | 136 | 158.5 |
| Shipping Weight(KG) | 132 | 162 | 186 | 132 | 162 | 186 | 133 | 162.5 | 188 |
The Kenton Stability Test Chamber delivers trusted, standards-compliant environmental control for pharmaceuticals.
Send an inquiry now and get a tailored solution for your lab.
