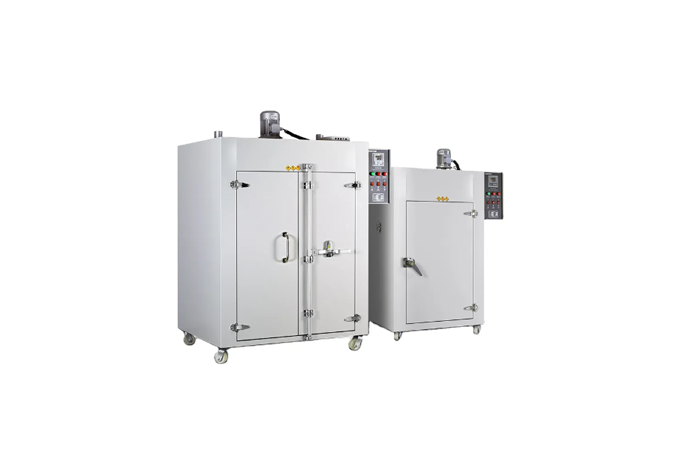

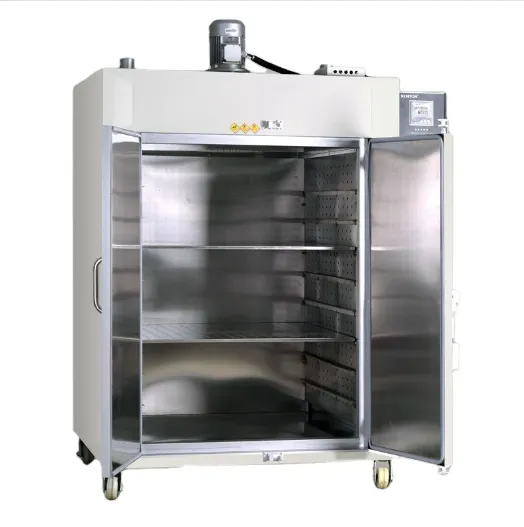

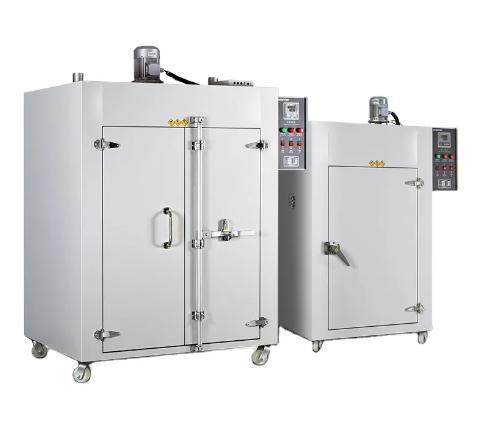

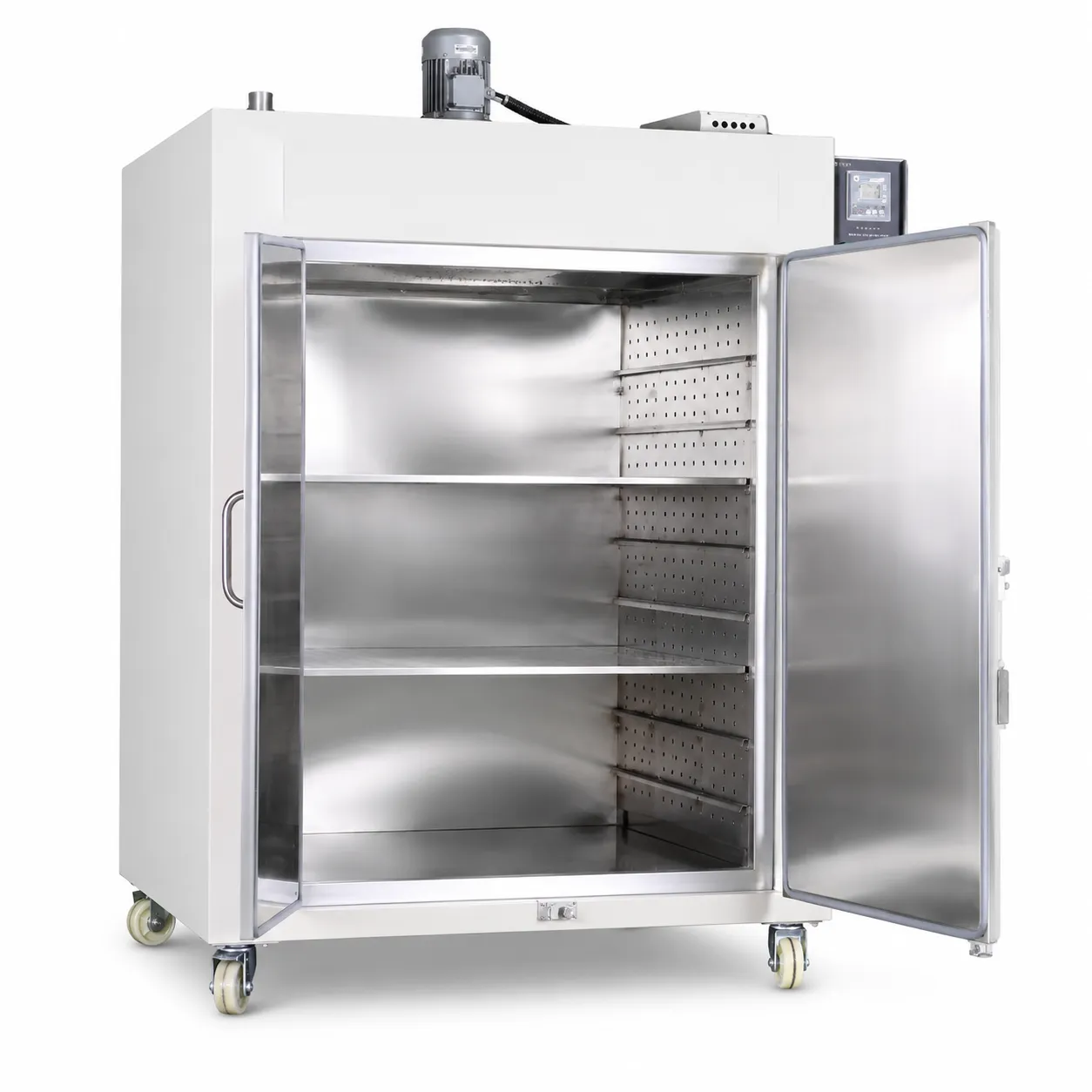

KENTON stands out among global Industrial Drying Oven manufacturers, providing high-performance solutions for industrial drying and dehydration. We design large hot air circulation ovens for a wide range of industrial applications — including electroplating, electronics, alloy jewelry oiling, food plastics, leather, and metalworking sectors. Efficiently handling dehydration in workshops and production lines, these ovens support continuous operation but are not for flammable or explosive materials. Explosion-proof use requires safety upgrades. CE-certified with a 2-year warranty.

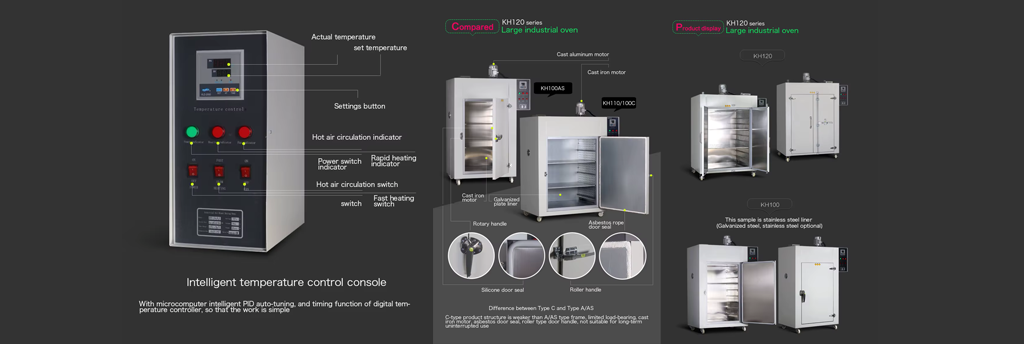

The industrial drying oven utilizes microcomputer PID technology with an integrated limiter and over-temperature auto-cutoff, ensuring accurate temperature regulation and sample protection.

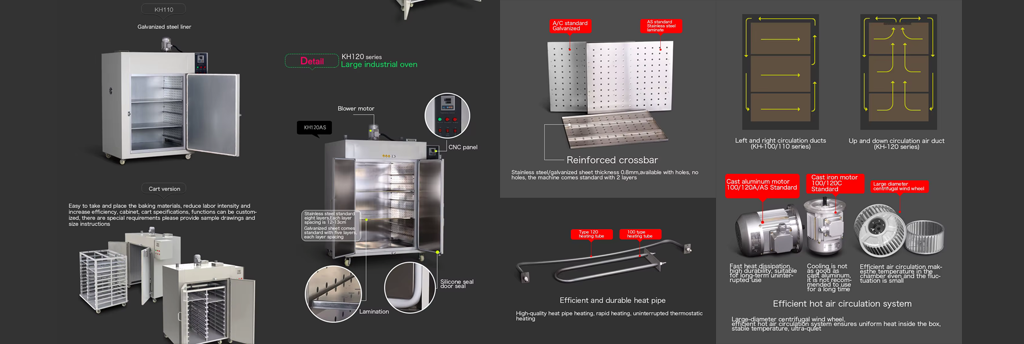

Equipped with durable aluminum-shell fans and optimized airflow design, it delivers rapid, uniform heating for consistent performance.

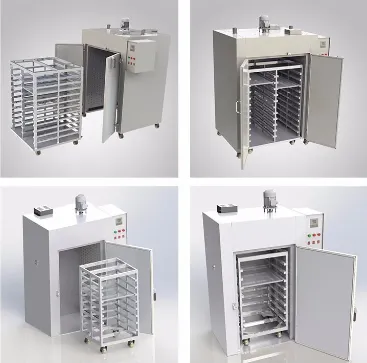

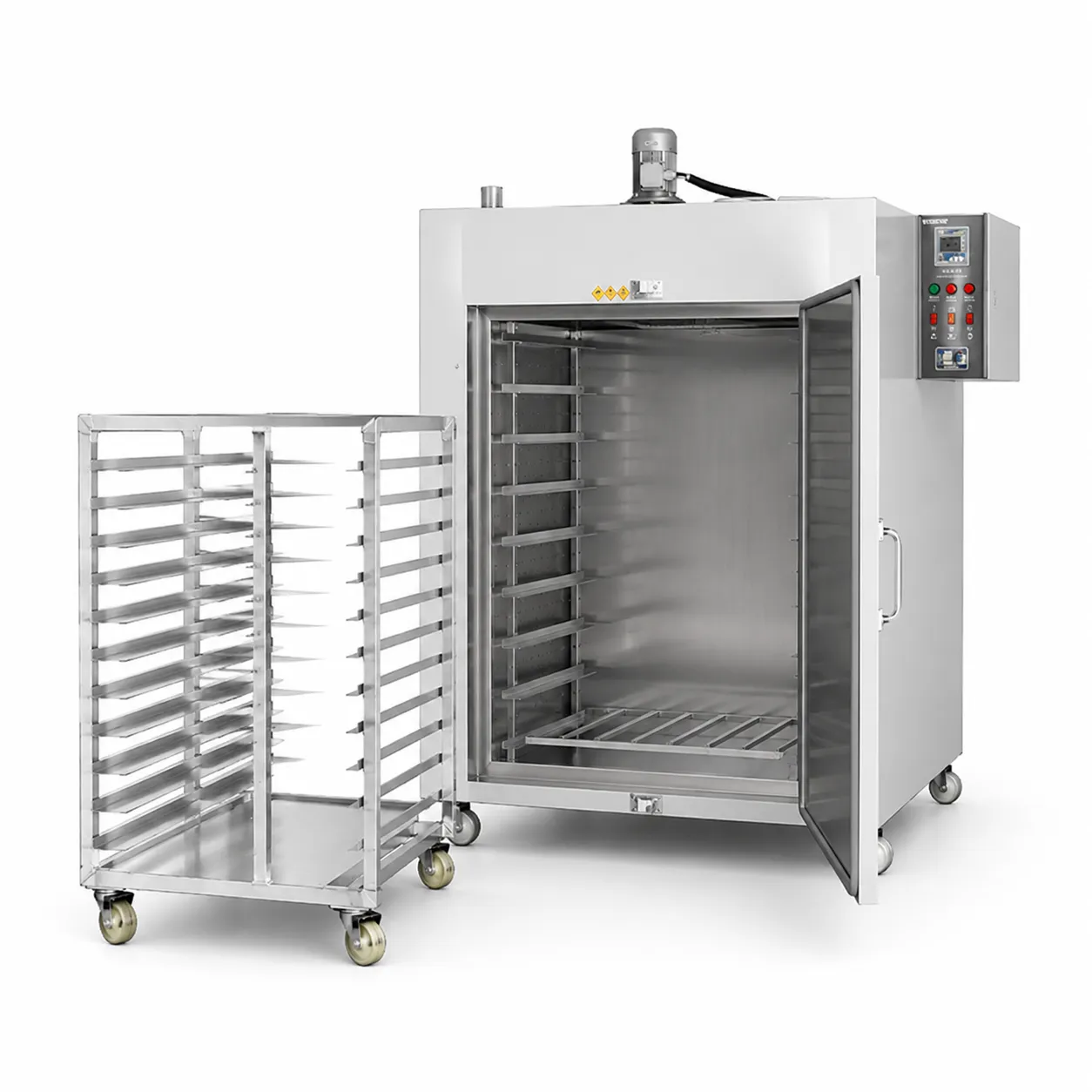

Available in horizontal or vertical airflow configurations with single/double doors, stainless or galvanized steel cavity, and optional shelf carts for flexible us
Designed for safe and continuous operation, the drying oven features reinforced insulation, robust door seals, and an IEC-compliant electrical system. It comes with CE certification and a 2-year warranty.
.webp "/uploads/image/20250527/kenton-apparatus.webp")
| Model | Voltage(V) | Temp(℃) | Timer | Accuracy(℃) | Fluctuation (%) | Power (KW) | Cavity Size （mm）（H*W*D） | Overall Dimension（mm）（H*W*D） | Packing Size（mm）（H*W*D） | Net Weight（KG） | Shipping Weight（KG） |
| KH-100C | 380 | “A”Room Temp+5~250℃ “C”room Temp+5~300℃ | 0~999mins/hour | ±1 | ±2 | 4~6 | 1000×600×500 | 1750×1130×700 | 1870×1210×780 | 152 | 156 |
| KH-100A(S) | 4~6 | 1000×600×500 | 1750×1130×700 | 1870×1210×780 | 152 | 156 | |||||
| KH-110C | 6~8 | 1000×800×600 | 1800×1350×800 | 1920*1430*880 | 170 | 175 | |||||
| KH-110A(S) | 6~8 | 1000×800×600 | 1800×1350×800 | 1920*1430*880 | 170 | 175 | |||||
| KH-120C | 8~12 | 1200×900×800 | 2000×1450×1000 | 2120×1530×1080 | 214 | 221 | |||||
| KH120A(S) | 8~12 | 1200×900×800 | 2000×1450×1000 | 2120×1530×1080 | 214 | 221 | |||||
| KH130A（S） | 10~14 | 1300×1000×1000 | Motor can be disassembled and assembled | ||||||||
| KH150A（S） | 12~16 | 1500×1200×1000 |
* Other volumes can be customized
